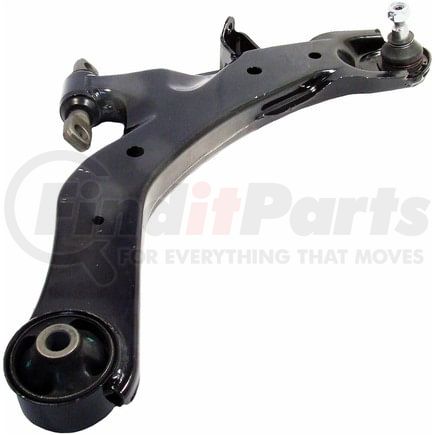

Delphi TC2403 - Control Arm and Ball Joint Assembly
$9299
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Control Arm and Ball Joint Assembly
Product Attributes
| Position(s) | Front Right Lower |
| Item Grade | Standard Replacement |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Press In |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Stamped |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 3 |
| Adjustable | No |
| Greasable | No |
| Control Arm Maximum Width | 14.764 IN |
| Control Arm Maximum Width | 375.00 MM |
| Control Arm Color | Black |
| Ball Joint Stud Length | 2.835 IN |
| Ball Joint Stud Length | 72.00 MM |
| Control Arm Maximum Length | 16.929 IN |
| Control Arm Maximum Length | 430.00 MM |
| Mounting Hole Diameter | 0.591 IN |
| Mounting Hole Diameter | 15.00 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604257364 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
Part Interchanges
- Beck/Arnley 101-5362
- Beck/Arnley 102-5361
- Beck/Arnley 102-5362
- MOOG Chassis Products CK620327
- MOOG Chassis Products K620327
- MOOG Chassis Products RK620327
- MOOG Chassis Products RK620519
- Mevotech CMS80101
- Mevotech MS80101
- Kia 545012D002DS
- Hyundai 54501-2D000
- Hyundai 54501-2D001
- Hyundai 54501-2D002
- Hyundai 545012D002AS
- Hyundai 545012D002DS
- MAS Industries CB60054
- MAS Industries CB60054PR
- TRW JTC7686
- Dorman 520-974
- MOOG Chassis Products 102-5361
- GS80101
Fits Vehicles
- Hyundai Elantra (2001-2006)
