Delphi TC2379 - Ball Joint
$3399
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description

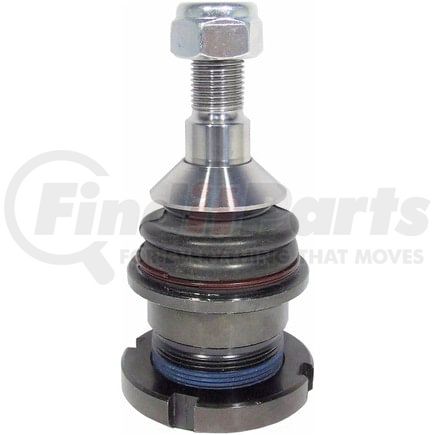

Ball Joint
Product Attributes
| Position(s) | Front Lower |
| Item Grade | Standard Replacement |
| Material | Steel |
| Maximum Outside Diameter | 1.528 IN |
| Maximum Outside Diameter | 38.80 MM |
| Color | Black |
| Stud Thread Diameter | 0.472 IN |
| Stud Thread Diameter | 12 MM |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 91.9 MM |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| 3068 | 1.339 IN |
| Mounting Bolt Length | 34.00 MM |
| Washers Included | No |
| Height | 3.488 IN |
| Height | 88.60 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 3 |
| Adjustable | No |
| Greasable | No |
| 4966 | 0.709 IN |
| Stud Thread Length | 18 MM |
| 839 | 15mm |
| Stud Type | Threaded |
| Distance Between Mounting Holes | 66.50 MM |
| Dust Boot Material | Rubber |
| 9202 | 0.394 IN |
| Mounting Bolt Shank Diameter | 10.00 MM |
| 9203 | 0.878 IN |
| Mounting Bolt Head Diameter | 22.30 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.25 MM |
| 9207 | 1.378 IN |
| Mounting Bolt Thread Length | 35.00 MM |
| Mounting Bolt Thread Diameter | 10.00 MM |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| 9212 | 0.835 IN |
| Stud Tapered End 2 Diameter | 21.2 MM |
| 9213 | 0.602 IN |
| Stud Tapered End 1 Diameter | 15.3 MM |
| Stud Thread Pitch | 1.5 MM |
| Mounting Bolt Thread Diameter | 0.390 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604257210 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
Part Interchanges
Fits Vehicles
- Mercedes-Benz ML450 (2010-2011)
- Mercedes-Benz GL350 (2010-2012)
- Mercedes-Benz GL550 (2008-2012)
- Mercedes-Benz ML550 (2008-2011)
- Mercedes-Benz GL320 (2007-2009)
- Mercedes-Benz R320 (2007-2009)
- Mercedes-Benz ML320 (2007-2009)
- Mercedes-Benz GL450 (2007-2012)
- Mercedes-Benz R63 AMG (2007)
- Mercedes-Benz ML63 AMG (2007-2011)
- Mercedes-Benz R350 (2006-2012)
- Mercedes-Benz R500 (2006-2007)
- Mercedes-Benz ML350 (2006-2011)
- Mercedes-Benz ML500 (2006-2007)
