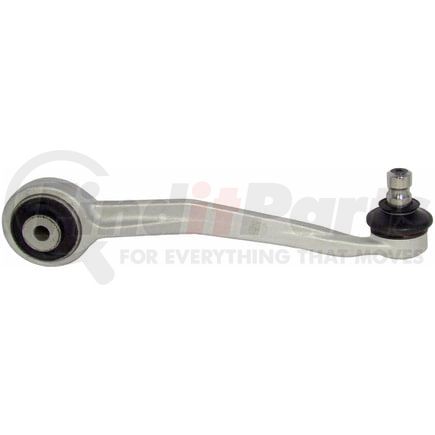

Name: Delphi TC2336 Control Arm and Ball Joint Assembly
SKU: tc2336
Price: 57.49 USD
Availability: InStock

DELPHI part description

Product Description

Control Arm and Ball Joint Assembly

Product Attributes

Item Grade	Standard Replacement
Position(s)	Front Right Upper Rearward
Pre-Greased	Yes
Grease Fitting Included	No
Bushings Included	Yes
Ball Joint Stud Type	Grooved
Control Arm Construction	Casting/Forged
Control Arm Material	Aluminum
Mounting Hardware Included	No
Mounting Hole Quantity	1
Adjustable	No
Greasable	No
Control Arm Maximum Width	1.772 IN
Control Arm Maximum Width	45.00 MM
Control Arm Color	Gray
Ball Joint Thread Diameter	16.0 MM
Ball Joint Stud Length	40.00 MM
Control Arm Maximum Length	11.260 IN
Control Arm Maximum Length	286.00 MM
Mounting Hole Diameter	10.20 MM
Bushing Material	Rubber
Bushing Color	Black
Finish	Uncoated
Dust Boot Included	Yes
Ball Joint Included	Yes
Grade Type	Premium
Boot Material	Chloroprene Rubber (CR)
Boot Color	Black
Steering Type	Power
Bearing Material	Plastic
Dust Boot Material	Chloroprene Rubber (CR)
Ball Joint Stud Length	1.575 IN
Mounting Hole Diameter	0.402 IN

Additional Information

Harmonized Tariff Code (Schedule B)	8708807000
Country of Origin (Primary)	CN
Harmonized Tariff Code (HTS)	8708806590
Warranty Special	Limited Lifetime
Warranty Special UOM	LF
UPC	00689604257043
VMRS Code	016001002
UNSPSC	25172013

Part Interchanges

Fits Vehicles

Audi SQ5 (2014-2017)
Audi RS5 (2013-2015)
Audi Q5 (2012-2017)
Audi S4 (2010-2016)
Audi A5 (2008-2016)
Audi A4 Quattro (2009-2016)
Audi A4 (2009-2016)
Audi S5 (2008-2017)
Audi A5 Quattro (2008-2017)
