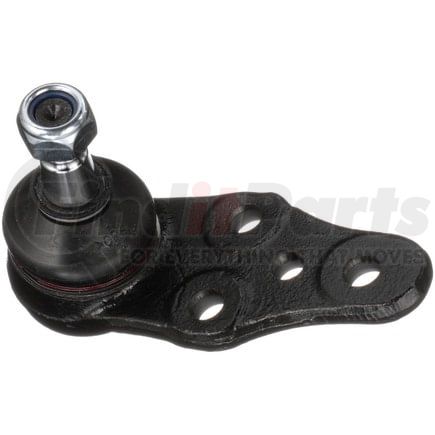

(888) 312-8812 Login SignupDELPHI TC232 Ball Joint
Tap to view 23 more
$2399
Limited availability at this price!
5 Day Lead Time
Get it by Wednesday, Dec 24
DELPHI TC232 Part Description
DELPHI TC232 Specifications
Product Attributes
| Position(s) | Front Lower |
| Item Grade | Standard Replacement |
| Material | Steel |
| Maximum Outside Diameter | 2.059 IN |
| Maximum Outside Diameter | 52.30 MM |
| Color | Black |
| Stud Thread Diameter | 0.472 IN |
| Stud Thread Diameter | 12 MM |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 52.3 MM |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Mounting Bolt Length | 1.181 IN |
| Mounting Bolt Length | 30.00 MM |
| Washers Included | No |
| Height | 3.248 IN |
| Height | 82.50 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 3 |
| Adjustable | No |
| Greaseable | No |
| Stud Thread Length | 0.512 IN |
| Stud Thread Length | 13 MM |
| Wrench Size | 17mm |
| Stud Type | Threaded |
| Mounting Type | Bolt-In |
| Distance Between Mounting Holes | 41.00 MM |
| Dust Boot Material | Rubber |
| Mounting Bolt Shank Diameter | 0.394 IN |
| Mounting Bolt Shank Diameter | 10.00 MM |
| Mounting Bolt Head Diameter | 0.787 IN |
| Mounting Bolt Head Diameter | 20.00 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.25 MM |
| Mounting Bolt Thread Length | 1.181 IN |
| Mounting Bolt Thread Length | 30.00 MM |
| Mounting Bolt Thread Diameter | 10.00 MM |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Tapered End 2 Diameter | 0.642 IN |
| Stud Tapered End 2 Diameter | 16.3 MM |
| Stud Tapered End 1 Diameter | 0.524 IN |
| Stud Tapered End 1 Diameter | 13.3 MM |
| Stud Thread Pitch | 1.5 MM |
| Length | 128.00 MM |
| Length | 5.040 IN |
| Mounting Bolt Thread Diameter | 0.390 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604256930 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC232 Part Interchanges
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-4832 |
| MOOG Chassis Products | K90692 |
| Mevotech | MK90692 |
| Deeza | DA-F207 |
| Daewoo | 1603164, 9027-2683, 9478-8122 |
| Opel | 1603120, 1603164 |
| MAS Industries | BJ52025 |
| TRW | JBJ146 |
| Vauxhall | 1603164, 90140407, 9027-2683 |
| Import Direct | BJ06099 |
DELPHI TC232 Fits Vehicles
- Daewoo Lanos (1999-2002)
