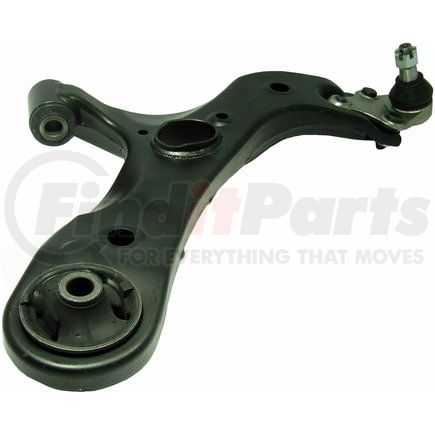

Delphi TC2283 - Control Arm and Ball Joint Assembly
$10399
MSRP: $133.98
Save: $29.99
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Control Arm and Ball Joint Assembly
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Right Lower |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Bolt In |
| Ball Joint Stud Type | THREADED |
| Control Arm Construction | Stamped |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Adjustable | No |
| Control Arm Maximum Width | 15.157 IN |
| Control Arm Maximum Width | 385.00 MM |
| Control Arm Color | Black |
| Control Arm Maximum Length | 18.307 IN |
| Bushing Material | Rubber |
| 9532 | 9.941 IN |
| 9532 | 252.50 MM |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Greasable | No |
| Control Arm Maximum Length | 465.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Dust Boot Material | Chloroprene Rubber (CR) |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708947550 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604256633 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
Part Interchanges
Fits Vehicles
- Toyota Corolla iM (2017-2018)
- Toyota Mirai (2016-2020)
- Scion iM (2016)
- Toyota Prius V (2012-2018)
- Lexus HS250h (2010-2012)
- Scion tC (2010-2016)
- Scion xB (2008-2015)
