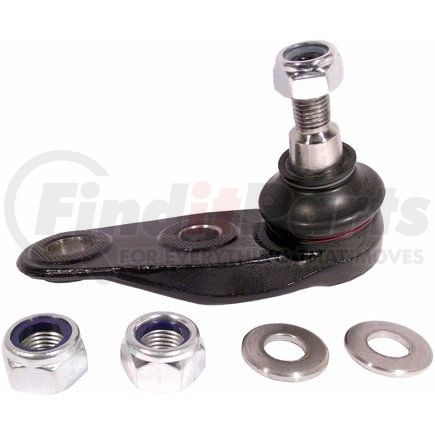

Delphi TC2234 - Ball Joint
$2949
MSRP: $39.25
Save: $9.76
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Ball Joint
Product Attributes
| Position(s) | Front Right Lower |
| Item Grade | Standard Replacement |
| Material | Steel |
| Maximum Outside Diameter | 3.228 IN |
| Maximum Outside Diameter | 82.00 MM |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 82 MM |
| Type | Premium |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Washers Included | Yes |
| Height | 2.126 IN |
| Height | 54.00 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 2 |
| Adjustable | No |
| Greasable | No |
| 4966 | 0.878 IN |
| Stud Thread Length | 22.3 MM |
| Stud Type | Threaded |
| Mounting Type | Bolt-In |
| Distance Between Mounting Holes | 48.00 MM |
| Dust Boot Material | Rubber |
| Bushing Quantity | 0 |
| Mounting Bolt Shank Diameter | 17.00 MM |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| 9212 | 0.646 IN |
| Stud Tapered End 2 Diameter | 16.4 MM |
| 9213 | 0.781 IN |
| Stud Tapered End 1 Diameter | 19.85 MM |
| Stud Thread Pitch | 1.5 MM |
| Length | 134.00 MM |
| Length | 5.280 IN |
| 9202 | 0.670 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604256305 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
Part Interchanges
Fits Vehicles
- Mini Cooper (2002-2015)
