Delphi TC2228 - Control Arm and Ball Joint Assembly
$8099
MSRP: $170.88
Save: $89.89
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description

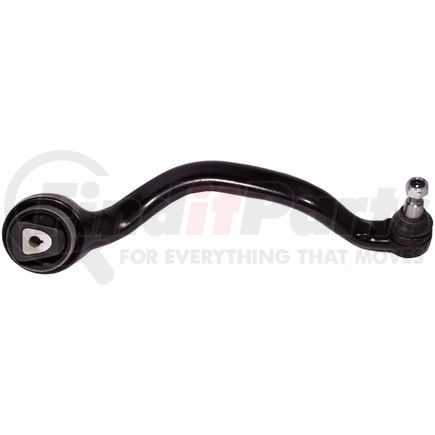

Control Arm and Ball Joint Assembly
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Right Lower Forward |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 1 |
| Greasable | No |
| Control Arm Maximum Width | 5.315 IN |
| Control Arm Maximum Width | 135.00 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 14.00 MM |
| Ball Joint Stud Length | 80.00 MM |
| Control Arm Maximum Length | 19.291 IN |
| Control Arm Maximum Length | 490.00 MM |
| Mounting Hole Diameter | 12.20 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 14.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Ball Joint Thread Diameter | 0.551 IN |
| Ball Joint Stud Length | 3.150 IN |
| Thread Diameter | 0.551 IN |
| Mounting Hole Diameter | 0.480 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604256244 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
Part Interchanges
- Beck/Arnley 101-7039
- Beck/Arnley 102-7039
- MOOG Chassis Products K620799
- MOOG Chassis Products RK620798
- MOOG Chassis Products RK620799
- Mevotech CMS101144
- Mevotech MS101144
- BMW 3112 6773 950
- MAS Industries CB14354
- MAS Industries CB14354PR
- TRW JTC1455
- Dorman 521-161
- MOOG Chassis Products 102-7039
- BMW 31 12 6 791 396
- BMW 31 12 6 863 170
- Dorman 524-850
- CK620799
- GS101144
- 521-162
Fits Vehicles
- BMW X6 (2008-2019)
- BMW X5 (2007-2018)
