Delphi TC2153 - Ball Joint
$1799
MSRP: $28.17
Save: $10.18
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description

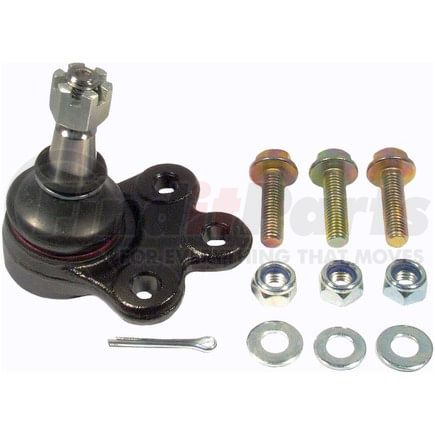

Ball Joint
Product Attributes
| Position(s) | Front Lower |
| Item Grade | Standard Replacement |
| Material | Steel |
| Maximum Outside Diameter | 3.858 IN |
| Maximum Outside Diameter | 98.00 MM |
| Castle Nut Included | Yes |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 98 MM |
| Type | Premium |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| 3068 | 1.827 IN |
| Mounting Bolt Length | 46.40 MM |
| Washers Included | No |
| Height | 3.307 IN |
| Height | 84.00 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 3 |
| Adjustable | No |
| Greasable | No |
| 4966 | 0.827 IN |
| Stud Thread Length | 21 MM |
| Stud Type | Threaded |
| Mounting Type | Bolt-In |
| Distance Between Mounting Holes | 55.10 MM |
| Dust Boot Material | Rubber |
| Bushing Quantity | 0 |
| 9203 | 0.772 IN |
| Mounting Bolt Head Diameter | 19.60 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.25 MM |
| 9207 | 1.142 IN |
| Mounting Bolt Thread Length | 29.00 MM |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| 9212 | 0.425 IN |
| Stud Tapered End 2 Diameter | 10.8 MM |
| 9213 | 0.598 IN |
| Stud Tapered End 1 Diameter | 15.2 MM |
| Stud Thread Pitch | 1.75 MM |
| Length | 98.00 MM |
| Length | 3.860 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604255834 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
Part Interchanges
Fits Vehicles
- Chevrolet Captiva Sport (2008-2010)
