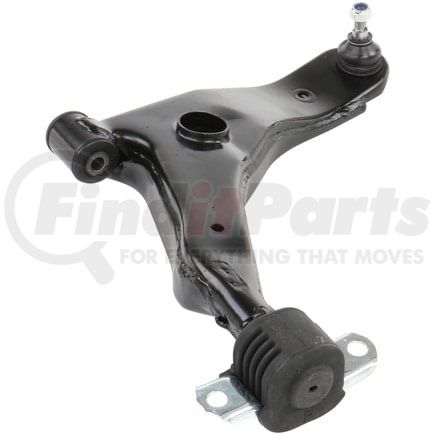

(888) 312-8812 Login SignupDELPHI TC2094 Control Arm and Ball Joint Assembly
Tap to view 23 more
MSRP: $139.02
$9549
Save $43.53
Limited availability at this price!
In Stock
Get it by Friday, Dec 26
DELPHI TC2094 Part Description
DELPHI TC2094 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Right Lower |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Press In |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Stamped |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 2 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 3.543 IN |
| Control Arm Maximum Width | 90.00 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 0.472 IN |
| Ball Joint Thread Diameter | 12.00 MM |
| Ball Joint Stud Length | 0.740 IN |
| Ball Joint Stud Length | 18.80 MM |
| Control Arm Maximum Length | 16.819 IN |
| Control Arm Maximum Length | 427.20 MM |
| Mounting Hole Diameter | 0.394 IN |
| Mounting Hole Diameter | 10.00 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 12.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Thread Diameter | 0.472 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604255544 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC2094 Part Interchanges
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-5063, 102-5063 |
| MOOG Chassis Products | CK620594, RK620594 |
| Mevotech | CMS20317, MS20317 |
| Volvo | 30887654 |
| MAS Industries | CB45124, CB45124PR, 523-622 |
| TRW | JTC1003 |
DELPHI TC2094 Fits Vehicles
- Volvo V40 (2000-2004)
- Volvo S40 (2000-2004)
