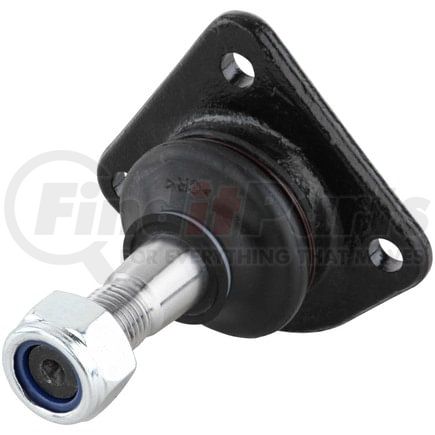

Delphi TC203 - Ball Joint
$1199
MSRP: $16.12
Save: $4.13
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Ball Joint
Product Attributes
| Position(s) | Front Upper |
| Item Grade | Standard Replacement |
| Material | Steel |
| Maximum Outside Diameter | 3.031 IN |
| Maximum Outside Diameter | 77.00 MM |
| Color | Black |
| Stud Thread Diameter | 0.551 IN |
| Stud Thread Diameter | 14 MM |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 82.5 MM |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| 3068 | 1.193 IN |
| Mounting Bolt Length | 30.30 MM |
| Washers Included | Yes |
| Height | 3.543 IN |
| Height | 90.00 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 3 |
| Adjustable | No |
| Greasable | No |
| 4966 | 0.921 IN |
| Stud Thread Length | 23.4 MM |
| 839 | 22mm |
| Stud Type | Threaded |
| Mounting Type | Bolt-In |
| Distance Between Mounting Holes | 36.50 MM |
| Dust Boot Material | Rubber |
| 9202 | 0.315 IN |
| Mounting Bolt Shank Diameter | 8.00 MM |
| 9203 | 0.567 IN |
| Mounting Bolt Head Diameter | 14.40 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.25 MM |
| 9207 | 0.984 IN |
| Mounting Bolt Thread Length | 25.00 MM |
| Mounting Bolt Thread Diameter | 8.00 MM |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| 9212 | 0.693 IN |
| Stud Tapered End 2 Diameter | 17.6 MM |
| 9213 | 0.583 IN |
| Stud Tapered End 1 Diameter | 14.8 MM |
| Stud Thread Pitch | 1.5 MM |
| Length | 77.00 MM |
| Length | 3.030 IN |
| Mounting Bolt Thread Diameter | 0.310 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604255094 |
| VMRS Code | 016001014 |
| UNSPSC | 25174203 |
Part Interchanges
Fits Vehicles
- Lada 1300 (1983)
- Lada Niva (1984-1993)
