Delphi TC1963 - Ball Joint
$2299
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description

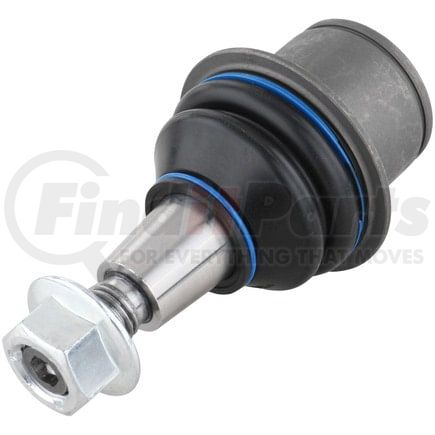

Ball Joint
Product Attributes
| Position(s) | Front Lower |
| Item Grade | Standard Replacement |
| Material | Steel |
| Maximum Outside Diameter | 2.217 IN |
| Maximum Outside Diameter | 56.30 MM |
| Color | Silver |
| Stud Thread Diameter | 0.472 IN |
| Stud Thread Diameter | 12 MM |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 56.5 MM |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Washers Included | No |
| Height | 3.610 IN |
| Height | 91.70 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 0 |
| Adjustable | No |
| Greasable | No |
| 4966 | 0.866 IN |
| Stud Thread Length | 22 MM |
| 839 | 18mm |
| Stud Type | Threaded |
| Mounting Type | Press-In |
| Dust Boot Material | Rubber |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| 9212 | 0.681 IN |
| Stud Tapered End 2 Diameter | 17.3 MM |
| 9213 | 0.543 IN |
| Stud Tapered End 1 Diameter | 13.8 MM |
| Stud Thread Pitch | 1.75 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604254813 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
Part Interchanges
- Beck/Arnley 101-7000
- Beck/Arnley 101-7363
- Raybestos Chassis 505-1453
- MOOG Chassis Products K500148
- Mcquay-Norris FA2405
- Mevotech MS10525
- Mevotech MS10535
- Deeza LA-F201
- MAS Industries BJ35036
- MAS Industries BJ35135
- Rover RBK 500040
- Rover RBK 500180
- Rover RBK 500230
- Rover RBK 500280
- Rover RBK 500300
- Rover RBK500240
- TRW JBJ828
- Import Direct BJ06129
- Import Direct BJ14048
- MS10536
Fits Vehicles
- Land Rover LR4 (2010-2016)
- Land Rover Range Rover Sport (2006-2013)
- Land Rover LR3 (2005-2009)
