Position(s)	Front Lower
Item Grade	Standard Replacement
Material	Steel
Maximum Outside Diameter	3.740 IN
Maximum Outside Diameter	95.00 MM
Castle Nut Included	No
Grease Fitting Included	No
Suspension Grade Type	Standard
Bushings Included	No
Dust Boot Included	Yes
Ball Joint Assembly	Yes
Width	95 MM
Type	Premium
Cotter Pin Included	No
Cotter Pin Hole	No
Mounting Hardware Included	Yes
Mounting Bolt Length	1.433 IN
Mounting Bolt Length	36.40 MM
Washers Included	Yes
Height	3.386 IN
Height	86.00 MM
Nuts Included	Yes
Mounting Hole Quantity	3
Adjustable	No
Greaseable	No
Stud Thread Length	1.024 IN
Stud Thread Length	26 MM
Stud Type	Threaded
Mounting Type	Bolt-In
Distance Between Mounting Holes	55.90 MM
Dust Boot Material	Rubber
Bushing Quantity	0
Mounting Bolt Head Diameter	0.772 IN
Mounting Bolt Head Diameter	19.60 MM
Mounting Bolts Included	Yes
Mounting Bolt Thread Pitch	1.25 MM
Mounting Bolt Thread Length	1.181 IN
Mounting Bolt Thread Length	30.00 MM
Mount Plate Included	No
Tapered Stud	Yes
Stud Tapered End 2 Diameter	0.709 IN
Stud Tapered End 2 Diameter	18 MM
Stud Tapered End 1 Diameter	0.961 IN
Stud Tapered End 1 Diameter	24.4 MM
Stud Thread Pitch	1.5 MM
Length	101.00 MM
Length	3.980 IN

Harmonized Tariff Code (Schedule B)	8708807000
Country of Origin (Primary)	TR
Harmonized Tariff Code (HTS)	8708806590
Warranty Special	Limited Lifetime
Warranty Special UOM	LF
UPC	00689604254509
VMRS Code	016001015
UNSPSC	25174203

Brand	Part Number
MAS Industries	BJ45255
N/A	MS10580, BJ45255PR

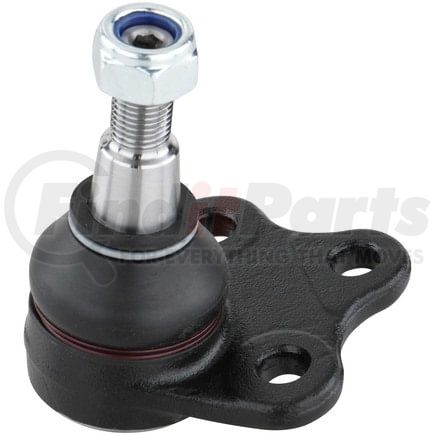

DELPHI TC1907 Ball Joint

DELPHI TC1907 Part Description
