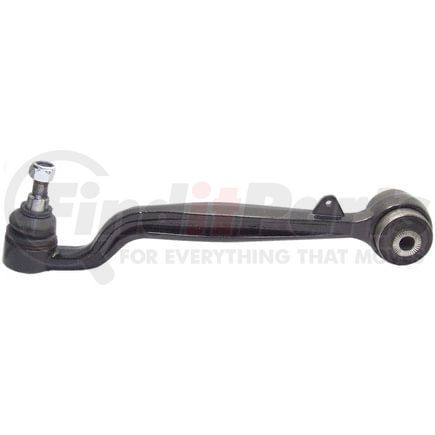

Delphi TC1905 - Control Arm and Ball Joint Assembly
$9699
MSRP: $130.68
Save: $33.69
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Control Arm and Ball Joint Assembly
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Machined |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 1 |
| Adjustable | No |
| Greasable | No |
| Control Arm Maximum Width | 68.00 MM |
| Control Arm Maximum Width | 2.677 IN |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 14.00 MM |
| Ball Joint Stud Length | 95.00 MM |
| Control Arm Maximum Length | 405.00 MM |
| Control Arm Maximum Length | 15.945 IN |
| Mounting Hole Diameter | 14.20 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 14.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Ball Joint Thread Diameter | 0.551 IN |
| Ball Joint Stud Length | 3.740 IN |
| Thread Diameter | 0.551 IN |
| Mounting Hole Diameter | 0.559 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708947550 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604254493 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
Part Interchanges
- Beck/Arnley 102-7627
- MOOG Chassis Products CK620715
- MOOG Chassis Products K620715
- MOOG Chassis Products RK620715
- Mevotech CMS101011
- Mevotech MS101012
- Audi RBJ 500710
- Audi RBJ 500920
- Audi RBJ000062
- MAS Industries CB35065
- MAS Industries CB35065PR
- Rover RBJ 500710
- Rover RBJ 500920
- Rover RBJ000062
- Dorman 52-2097
- TRW JTC1371
- RBJ000710
- GS101011
Fits Vehicles
- Land Rover Range Rover (2002-2014)
