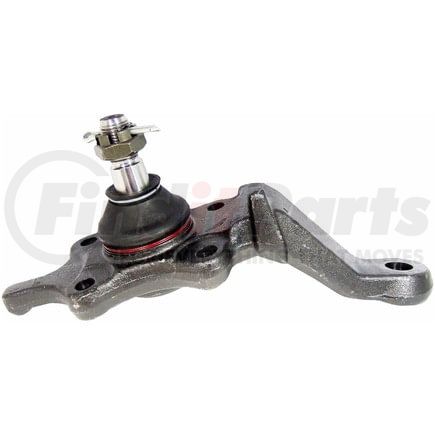

(888) 312-8812 Login SignupDELPHI TC1793 Ball Joint
Tap to view 2 more
MSRP: $141.89
$10299
Save $38.90
Limited availability at this price!
In Stock
Get it by Friday, Dec 26
DELPHI TC1793 Part Description
DELPHI TC1793 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Left Lower |
| Material | Steel |
| Maximum Outside Diameter | 2.240 IN |
| Maximum Outside Diameter | 56.90 MM |
| Color | Gray |
| Stud Thread Diameter | 0.63 IN |
| Stud Thread Diameter | 16 MM |
| Castle Nut Included | Yes |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 78 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | No |
| Washers Included | No |
| Height | 5.866 IN |
| Height | 149.00 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 5 |
| Adjustable | No |
| Greaseable | No |
| Stud Thread Length | 0.886 IN |
| Stud Thread Length | 22.5 MM |
| Wrench Size | 24mm |
| Stud Type | Threaded |
| Mounting Type | Bolt-In |
| Distance Between Mounting Holes | 63.50 MM |
| Dust Boot Material | Rubber |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Tapered End 2 Diameter | 0.787 IN |
| Stud Tapered End 2 Diameter | 20 MM |
| Stud Tapered End 1 Diameter | 0.689 IN |
| Stud Tapered End 1 Diameter | 17.5 MM |
| Stud Thread Pitch | 1.5 MM |
| Length | 240.00 MM |
| Length | 9.450 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604253946 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC1793 Part Interchanges
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-4815 |
| Raybestos Chassis | 505-1299 |
| MOOG Chassis Products | K90262 |
| Mcquay-Norris | FA2205 |
| Mevotech | MK90262 |
| Deeza | TY-F648 |
| Toyota | 4334039325, 4334039355, 4334039356, 4334039465 |
| MAS Industries | B90262, BJ75023 |
| TRW | JBJ534 |
| Import Direct | BJ13006 |
| N/A | GK90262, BJ75023PR |
DELPHI TC1793 Fits Vehicles
- Toyota Sequoia (2001-2002)
- Toyota Tundra (2000-2002)
- Toyota 4Runner (1996-2002)
DELPHI TC1793 Customer Reviews
No reviews yet
Be the first to review this product!
