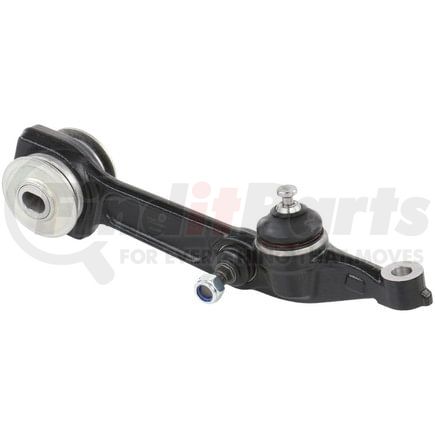

Delphi TC1496 - Control Arm and Ball Joint Assembly
$11099
MSRP: $134.62
Save: $23.63
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Control Arm and Ball Joint Assembly
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Left Lower Rearward |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 2 |
| Greasable | No |
| Control Arm Maximum Width | 4.921 IN |
| Control Arm Maximum Width | 125.00 MM |
| Control Arm Color | Black |
| Ball Joint Stud Length | 3.661 IN |
| Ball Joint Stud Length | 93.00 MM |
| Control Arm Maximum Length | 15.906 IN |
| Control Arm Maximum Length | 404.00 MM |
| Mounting Hole Diameter | 0.646 IN |
| Mounting Hole Diameter | 16.40 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604252826 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
Part Interchanges
Fits Vehicles
- Mercedes-Benz S65 AMG (2006)
- Mercedes-Benz S350 (2006)
- Mercedes-Benz S600 (2001-2006)
- Mercedes-Benz S55 AMG (2001-2006)
- Mercedes-Benz S500 (2000-2006)
- Mercedes-Benz S430 (2000-2006)
