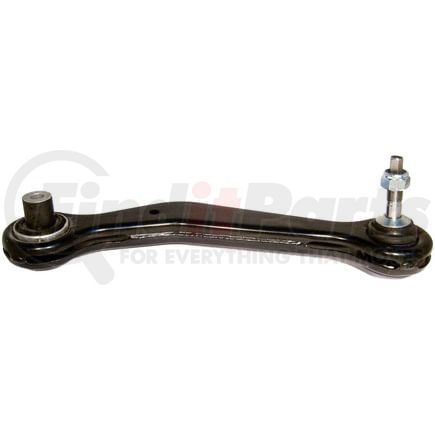

Delphi TC1347 - Control Arm and Ball Joint Assembly
$9199
MSRP: $120.55
Save: $28.56
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Control Arm and Ball Joint Assembly
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Rear Right Upper Rearward |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Stamped |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 1 |
| Adjustable | No |
| Greasable | No |
| Control Arm Maximum Width | 3.937 IN |
| Control Arm Maximum Width | 100.00 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 14.00 MM |
| Ball Joint Stud Length | 75.00 MM |
| Control Arm Maximum Length | 14.961 IN |
| Control Arm Maximum Length | 380.00 MM |
| Mounting Hole Diameter | 12.00 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 14.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Ball Joint Thread Diameter | 0.551 IN |
| Ball Joint Stud Length | 2.953 IN |
| Thread Diameter | 0.551 IN |
| Mounting Hole Diameter | 0.472 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604251997 |
| VMRS Code | 016008121 |
| UNSPSC | 25172013 |
Part Interchanges
- Beck/Arnley 101-6159
- Beck/Arnley 102-6159
- Beck/Arnley 102-7016
- Raybestos Chassis 502-1294
- MOOG Chassis Products CK620626
- MOOG Chassis Products K620626
- MOOG Chassis Products RK620626
- Mcquay-Norris FA3274
- Mevotech CMS10198
- Deeza BW-H238
- BMW 3332 1095 412
- BMW 3332 6768 274
- BMW 3332 6770 748
- BMW 3332 6770 860
- MAS Industries CB14538
- MAS Industries CB14538PR
- TRW JTC1393
- Dorman 521-110
- GS10198
Fits Vehicles
- BMW X5 (2000-2006)
