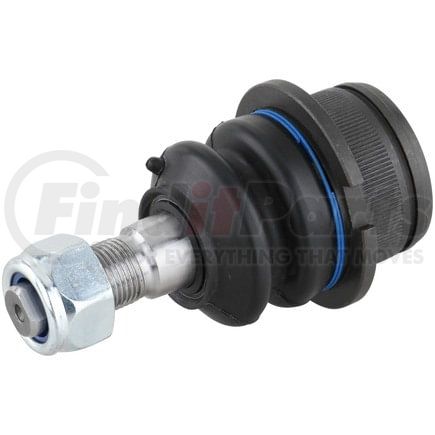

(888) 312-8812 Login SignupDELPHI TC134 Ball Joint
Tap to view 23 more
MSRP: $25.32
$2099
Save $4.33
Limited availability at this price!
In Stock
Get it by Monday, Jan 5
DELPHI TC134 Part Description
DELPHI TC134 Specifications
Product Attributes
| Position(s) | Front Lower, Front Upper. For the position specific to your vehicle, refer to the Applications. |
| Item Grade | Standard Replacement |
| Material | Steel |
| Maximum Outside Diameter | 2.559 IN |
| Maximum Outside Diameter | 65.00 MM |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 65 MM |
| Type | Premium |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Washers Included | No |
| Height | 2.520 IN |
| Height | 64.00 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 0 |
| Adjustable | No |
| Greaseable | No |
| Stud Thread Length | 1.004 IN |
| Stud Thread Length | 25.5 MM |
| Stud Type | Threaded |
| Mounting Type | Press-In |
| Dust Boot Material | Rubber |
| Bushing Quantity | 0 |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Tapered End 2 Diameter | 0.787 IN |
| Stud Tapered End 2 Diameter | 20 MM |
| Stud Tapered End 1 Diameter | 0.882 IN |
| Stud Tapered End 1 Diameter | 22.4 MM |
| Stud Thread Pitch | 1.5 MM |
| Length | 118.00 MM |
| Length | 4.650 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604251928 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC134 Part Interchanges
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-3378, 101-5604 |
| Raybestos Chassis | 500-1000 |
| MOOG Chassis Products | K9016 |
| Mevotech | MK6457 |
| Volkswagen | 211 405 371A, 211 405 371B |
| MAS Industries | BJ43016 |
| Import Direct | BJ14052 |
| N/A | BJ43016PR |
DELPHI TC134 Fits Vehicles
- Volkswagen Transporter (1968-1979)
