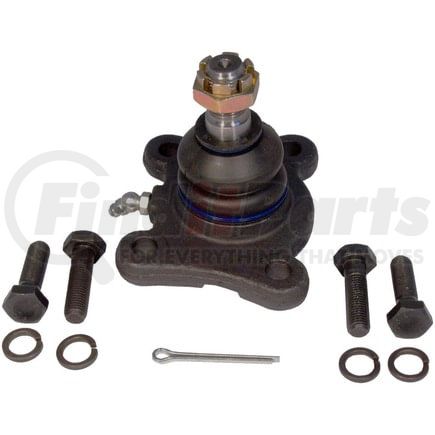

Delphi TC1338 - Ball Joint
$3949
MSRP: $53.92
Save: $14.43
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Ball Joint
Product Attributes
| Position(s) | Front Lower |
| Item Grade | Standard Replacement |
| Material | Steel |
| Maximum Outside Diameter | 4.539 IN |
| Maximum Outside Diameter | 115.30 MM |
| Color | Gray |
| Stud Thread Diameter | 0.63 IN |
| Stud Thread Diameter | 16 MM |
| Castle Nut Included | Yes |
| Grease Fitting Included | Yes |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 103 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| 3068 | 1.240 IN |
| Mounting Bolt Length | 31.50 MM |
| Washers Included | Yes |
| Height | 4.094 IN |
| Height | 104.00 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 4 |
| Adjustable | No |
| Greasable | Yes |
| 4966 | 0.827 IN |
| Stud Thread Length | 21 MM |
| 839 | 24mm |
| Stud Type | Threaded |
| Mounting Type | Bolt-In |
| Distance Between Mounting Holes | 63.00 MM |
| Dust Boot Material | Rubber |
| 9202 | 0.394 IN |
| Mounting Bolt Shank Diameter | 10.00 MM |
| 9203 | 0.693 IN |
| Mounting Bolt Head Diameter | 17.60 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.25 MM |
| 9207 | 0.984 IN |
| Mounting Bolt Thread Length | 25.00 MM |
| Mounting Bolt Thread Diameter | 10.00 MM |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| 9212 | 0.787 IN |
| Stud Tapered End 2 Diameter | 20 MM |
| 9213 | 0.709 IN |
| Stud Tapered End 1 Diameter | 18 MM |
| Stud Thread Pitch | 1.5 MM |
| Length | 4.010 IN |
| Length | 103.00 MM |
| Mounting Bolt Thread Diameter | 0.390 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604251904 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
Part Interchanges
- Beck/Arnley 101-4149
- Beck/Arnley 101-4879
- Raybestos Chassis 505-1169
- MOOG Chassis Products K9519
- Mcquay-Norris FA2054
- Mevotech MK9519
- Toyota 43330-39265
- Toyota 43330-39315
- Toyota 4333039835
- Toyota 43340-39245
- Toyota 43360-39075
- Toyota 43360-39087
- Toyota J4334039245
- Volkswagen J4334039245
- MAS Industries B9519
- TRW JBJ457
- Import Direct BJ07005
- MAS Industries BJ74056
- 43330-39175
- 433330-39195
- 43340-39175
- GK9519
Fits Vehicles
- Toyota T100 (1993-1998)
- Toyota Pickup (1989-1995)
- Toyota 4Runner (1989-1995)
