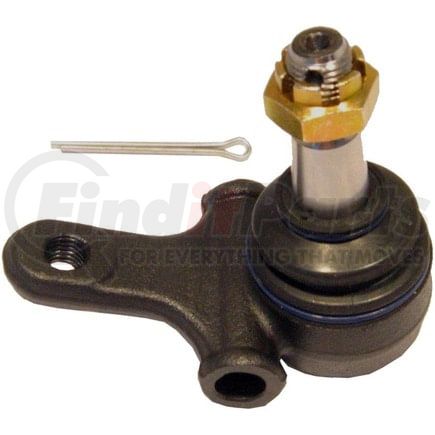

Delphi TC1267 - Ball Joint
$3199
MSRP: $42.80
Save: $10.81
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Ball Joint
Product Attributes
| Position(s) | Front Lower |
| Item Grade | Standard Replacement |
| Material | Steel |
| Maximum Outside Diameter | 1.890 IN |
| Maximum Outside Diameter | 48.00 MM |
| Color | Black |
| Stud Thread Diameter | 0.551 IN |
| Stud Thread Diameter | 14 MM |
| Castle Nut Included | Yes |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 60 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| 3068 | 3.642 IN |
| Mounting Bolt Length | 92.50 MM |
| Washers Included | No |
| Height | 3.835 IN |
| Height | 97.40 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 2 |
| Adjustable | No |
| Greasable | No |
| 4966 | 0.906 IN |
| Stud Thread Length | 23 MM |
| 839 | 18mm |
| Stud Type | Threaded |
| Mounting Type | Bolt-In |
| Distance Between Mounting Holes | 48.50 MM |
| Dust Boot Material | Rubber |
| 9202 | 0.472 IN |
| Mounting Bolt Shank Diameter | 12.00 MM |
| 9203 | 0.819 IN |
| Mounting Bolt Head Diameter | 20.80 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.5 MM |
| 9207 | 1.378 IN |
| Mounting Bolt Thread Length | 35.00 MM |
| Mounting Bolt Thread Diameter | 12.00 MM |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| 9212 | 0.713 IN |
| Stud Tapered End 2 Diameter | 18.1 MM |
| 9213 | 0.618 IN |
| Stud Tapered End 1 Diameter | 15.7 MM |
| Stud Thread Pitch | 1.5 MM |
| Mounting Bolt Thread Diameter | 0.470 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604251508 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
Part Interchanges
Fits Vehicles
- Mazda Miata (1990-1997, 1999-2005)
