DELPHI part description
Product Description

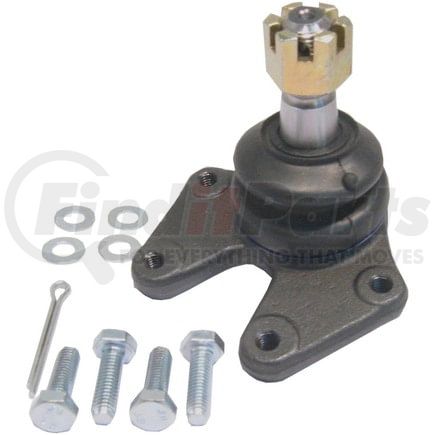

Ball Joint
Product Attributes
| Position(s) | Front Lower |
| Item Grade | Standard Replacement |
| Material | Steel |
| Maximum Outside Diameter | 2.067 IN |
| Maximum Outside Diameter | 52.50 MM |
| Color | Gray |
| Stud Thread Diameter | 0.63 IN |
| Stud Thread Diameter | 16 MM |
| Castle Nut Included | Yes |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 100.8 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| 3068 | 0.701 IN |
| Mounting Bolt Length | 17.80 MM |
| Washers Included | Yes |
| Height | 4.020 IN |
| Height | 102.10 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 4 |
| Adjustable | No |
| Greasable | No |
| 4966 | 0.791 IN |
| Stud Thread Length | 20.1 MM |
| 839 | 13mm |
| Stud Type | Threaded |
| Mounting Type | Bolt-In |
| Distance Between Mounting Holes | 40.00 MM |
| Dust Boot Material | Rubber |
| 9202 | 0.315 IN |
| Mounting Bolt Shank Diameter | 8.00 MM |
| 9203 | 0.567 IN |
| Mounting Bolt Head Diameter | 14.40 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.25 MM |
| 9207 | 0.906 IN |
| Mounting Bolt Thread Length | 23.00 MM |
| Mounting Bolt Thread Diameter | 8.00 MM |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| 9212 | 0.791 IN |
| Stud Tapered End 2 Diameter | 20.1 MM |
| 9213 | 0.701 IN |
| Stud Tapered End 1 Diameter | 17.8 MM |
| Stud Thread Pitch | 1.5 MM |
| Mounting Bolt Thread Diameter | 0.310 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604251379 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
Part Interchanges
Fits Vehicles
- Kia Sportage (1995-2002)
