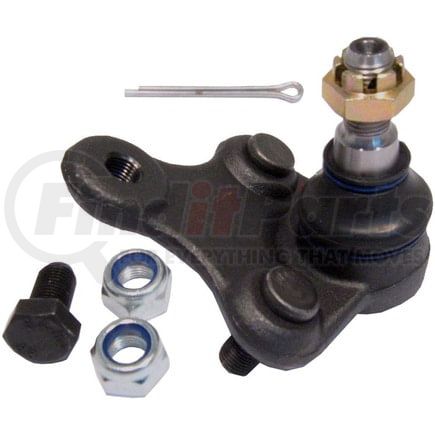

Delphi TC1184 - Ball Joint
$3649
MSRP: $48.75
Save: $12.26
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Ball Joint
Product Attributes
| Position(s) | Front Lower |
| Item Grade | Standard Replacement |
| Material | Steel |
| Maximum Outside Diameter | 3.858 IN |
| Maximum Outside Diameter | 98.00 MM |
| Color | Black |
| Stud Thread Diameter | 0.551 IN |
| Stud Thread Diameter | 14 MM |
| Castle Nut Included | Yes |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 98 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| 3068 | 1.094 IN |
| Mounting Bolt Length | 27.80 MM |
| Washers Included | No |
| Height | 3.799 IN |
| Height | 96.50 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 3 |
| Adjustable | No |
| Greasable | No |
| 4966 | 0.811 IN |
| Stud Thread Length | 20.6 MM |
| 839 | 19mm |
| Stud Type | Threaded |
| Mounting Type | Bolt-In |
| Distance Between Mounting Holes | 51.50 MM |
| Dust Boot Material | Rubber |
| 9202 | 0.472 IN |
| Mounting Bolt Shank Diameter | 12.00 MM |
| 9203 | 0.906 IN |
| Mounting Bolt Head Diameter | 23.00 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.25 MM |
| 9207 | 0.787 IN |
| Mounting Bolt Thread Length | 20.00 MM |
| Mounting Bolt Thread Diameter | 12.00 MM |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| 9212 | 0.831 IN |
| Stud Tapered End 2 Diameter | 21.1 MM |
| 9213 | 0.693 IN |
| Stud Tapered End 1 Diameter | 17.6 MM |
| Stud Thread Pitch | 1.5 MM |
| Mounting Bolt Thread Diameter | 0.470 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604251133 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
Part Interchanges
- Beck/Arnley 101-4306
- Raybestos Chassis 505-1284
- MOOG Chassis Products K90687
- MOOG Chassis Products K9649
- Mcquay-Norris FA2183
- Mevotech MK90687
- Mevotech MK9649
- Deeza TY-F215
- Toyota 43330-29225
- Toyota 43330-49025
- MAS Industries B9343
- MAS Industries B9649
- MAS Industries BJ74265
- TRW JBJ7524
- Import Direct BJ07025
- Import Direct BJ11007
- 4333029326
- 43330-29325
- GK9649
- GK90687
- BJ74265XL
Fits Vehicles
- Toyota RAV4 (1996-2003)
- Toyota Celica (1990-1993)
