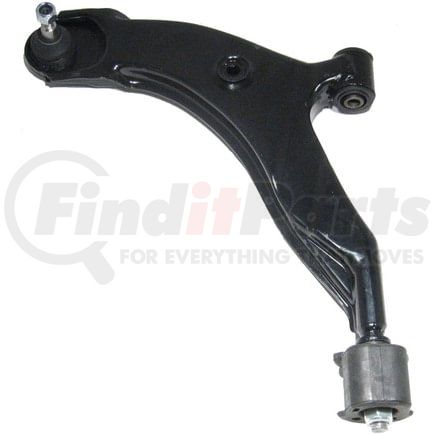

(888) 312-8812 Login SignupDELPHI TC1079 Control Arm and Ball Joint Assembly
Tap to view 2 more
$7149
Limited availability at this price!
5 Day Lead Time
Get it by Friday, Jan 2
DELPHI TC1079 Part Description
DELPHI TC1079 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Left Lower |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Press In |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Stamped |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 1 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 3.909 IN |
| Control Arm Maximum Width | 99.30 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 0.472 IN |
| Ball Joint Thread Diameter | 12.00 MM |
| Ball Joint Stud Length | 0.925 IN |
| Ball Joint Stud Length | 23.50 MM |
| Control Arm Maximum Length | 16.772 IN |
| Control Arm Maximum Length | 426.00 MM |
| Mounting Hole Diameter | 1.823 IN |
| Mounting Hole Diameter | 46.30 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 12.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Thread Diameter | 0.472 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604250631 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC1079 Part Interchanges
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-4380, 102-4380 |
| MOOG Chassis Products | CK620105, RK620105, RK621117, 102-4380 |
| Mevotech | CMS20416 |
| Hyundai | 54500-22000, 54500-22100, 54500-22200 |
| MAS Industries | CB60001, CB60001PR |
| TRW | JTC110 |
| Dorman | 520-861, 521-045 |
DELPHI TC1079 Fits Vehicles
- Hyundai Accent (1995-1999)
