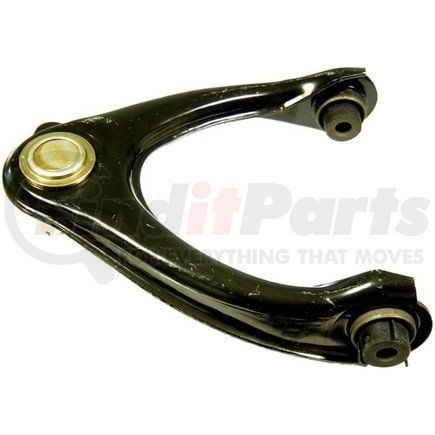

Delphi TC1074 - Control Arm and Ball Joint Assembly
$6149
MSRP: $86.40
Save: $24.91
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Control Arm and Ball Joint Assembly
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Left Upper |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Press In |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Stamped |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 2 |
| Adjustable | No |
| Greasable | No |
| Control Arm Maximum Width | 9.055 IN |
| Control Arm Maximum Width | 230.00 MM |
| Control Arm Color | Black |
| Ball Joint Stud Length | 3.425 IN |
| Ball Joint Stud Length | 87.00 MM |
| Control Arm Maximum Length | 9.449 IN |
| Control Arm Maximum Length | 240.00 MM |
| Mounting Hole Diameter | 0.406 IN |
| Mounting Hole Diameter | 10.30 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604250587 |
| VMRS Code | 016001002 |
| UNSPSC | 25172013 |
Part Interchanges
- Beck/Arnley 101-4856
- Beck/Arnley 102-4856
- MOOG Chassis Products CK90451
- MOOG Chassis Products K90451
- MOOG Chassis Products RK90451
- Mevotech CMK90451
- Mevotech MK90451
- Mevotech MS20116
- Honda 51460-S01-023
- Honda 51460-S01-A02
- Honda 51460-S04-023
- MAS Industries CB90451
- MAS Industries CB90451PR
- TRW JTC689
- Dorman 520-669
- Beck/Arnley 101-4786
- MOOG Chassis Products 101-4786
- MOOG Chassis Products 102-4856
- GK90451
Fits Vehicles
- Acura EL (1997-2000)
- Honda Civic (1996-2000)
