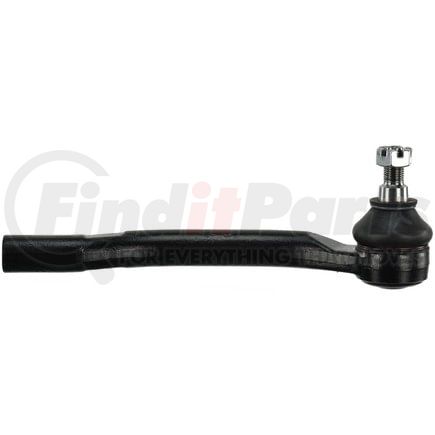

Name: Delphi TA3068 Tie Rod End
SKU: ta3068
Price: 21.99 USD
Availability: InStock

DELPHI part description

Product Description

Tie Rod End

Product Attributes

Position(s)	Right Outer
Item Grade	Standard Replacement
Color	Black
End 2 Gender	Female
Pre-Greased	Yes
Grease Fitting Included	No
Dust Boot Included	Yes
Width	54.1 MM
Type	Bent
Mounting Hardware Included	Yes
End 2 Thread Diameter	0.551 IN
End 2 Thread Diameter	14.00 MM
Height	79.80 MM
Housing Material	Steel
36	0.846 IN
Tube Diameter	21.50 MM
Adjustable	No
Greasable	No
Weight	1.74 lb
Cone Outside Diameter	18.10 MM
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
Stud Type	Threaded
End 2 Thread Pitch	1.5 MM
Length Stud Center to End	8.563 IN
Length Stud Center to End	217.50 MM
Dust Boot Material	Rubber
Tie Rod Material	Steel
End 1 Thread Diameter	0.472 IN
End 1 Thread Diameter	12.00 MM
Shank Length	18.10 MM
Stud Length	18.10 MM
Grade Type	Standard
Grade	Premium
Shank Length	0.713 IN
Stud Length	0.713 IN
662	0.713 IN

Additional Information

Harmonized Tariff Code (HTS)	8708998180
Warranty Special	Limited Lifetime
Warranty Special UOM	LF
Harmonized Tariff Code (Schedule B)	8708998175
Country of Origin (Primary)	TR
UPC	00689604249970
VMRS Code	015004019
UNSPSC	25174205

Part Interchanges

Fits Vehicles

Honda Pilot (2003-2008)
Acura MDX (2001-2006)
