DELPHI part description

Product Description

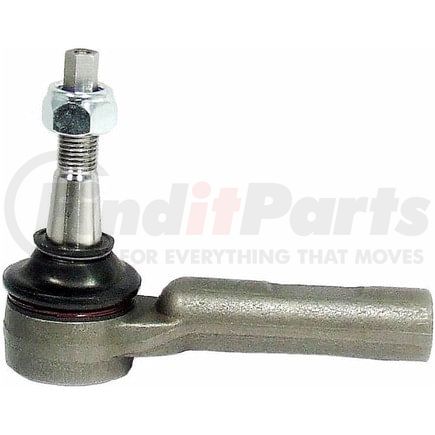

Tie Rod End

Product Attributes

Position(s) Outer
Item Grade Standard Replacement
Color Black
End 2 Gender Female
Pre-Greased Yes
Grease Fitting Included No
Dust Boot Included Yes
Width 45 MM
Type Straight
Mounting Hardware Included Yes
End 2 Thread Diameter 0.591 IN
End 2 Thread Diameter 15.00 MM
Height 100.00 MM
Housing Material Steel
36 0.984 IN
Tube Diameter 25.00 MM
Adjustable No
Greasable No
Weight 1.74 lb
Cone Outside Diameter 18.90 MM
Bearing Material Plastic
End 1 Thread Direction Clockwise (Right)
End 2 Thread Direction Clockwise (Right)
Stud Type Threaded
End 2 Thread Pitch 1.5 MM
Length Stud Center to End 4.724 IN
Length Stud Center to End 120.00 MM
Dust Boot Material Rubber
Tie Rod Material Steel
End 1 Thread Diameter 0.551 IN
End 1 Thread Diameter 14.00 MM
Shank Length 18.90 MM
Stud Length 18.90 MM
Grade Type Standard
Grade Premium
Shank Length 0.744 IN
Stud Length 0.744 IN
662 0.744 IN

Additional Information

Harmonized Tariff Code (HTS) 8708998180
Warranty Special Limited Lifetime
Warranty Special UOM LF
Harmonized Tariff Code (Schedule B) 8708998175
Country of Origin (Primary) TR
UPC 00689604248713
VMRS Code 015004045
UNSPSC 25174205

Part Interchanges

Fits Vehicles

  • Ram Dakota (2011)
  • Dodge Challenger (2008-2010)
  • Mitsubishi Raider (2006-2009)
  • Dodge Charger (2006-2010)
  • Chrysler 300 (2005-2010)
  • Dodge Magnum (2005-2008)
  • Dodge Durango (2000-2003)
  • Dodge Dakota (2000-2010)
