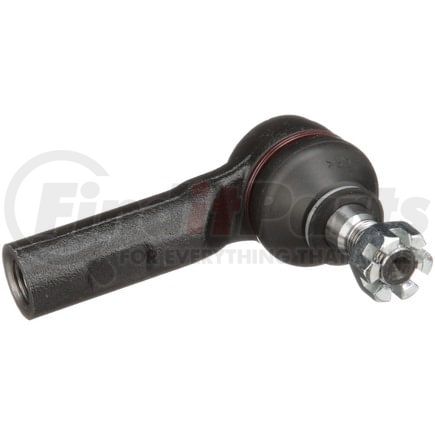

Name: Delphi TA2493 Tie Rod End
SKU: ta2493
Price: 21.49 USD
Availability: InStock

DELPHI part description

Product Description

Tie Rod End

Product Attributes

Position(s)	Outer
Item Grade	Standard Replacement
Color	Black
End 1 Gender	Female
End 2 Gender	Male
Pre-Greased	Yes
Grease Fitting Included	No
Dust Boot Included	Yes
Width	37 MM
Type	Straight
Mounting Hardware Included	Yes
End 2 Thread Diameter	0.472 IN
End 2 Thread Diameter	12.00 MM
Height	70.00 MM
Housing Material	Steel
Adjustable	Yes
Greasable	No
Weight	0.7 lb
Cone Outside Diameter	15.10 MM
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
Grade	Premium
Stud Type	Threaded
End 2 Thread Pitch	1.25 MM
Length Stud Center to End	3.307 IN
Length Stud Center to End	84.00 MM
Dust Boot Material	Rubber
Tie Rod Material	Steel
End 1 Thread Diameter	0.551 IN
End 1 Thread Diameter	14.00 MM
Shank Length	15.10 MM
Stud Length	15.10 MM
Grade Type	Standard
Shank Length	0.594 IN
Stud Length	0.594 IN
662	0.594 IN

Additional Information

Harmonized Tariff Code (Schedule B)	8708998175
Harmonized Tariff Code (HTS)	8708998180
Warranty Special	Limited Lifetime
Warranty Special UOM	LF
Country of Origin (Primary)	TR
UPC	00689604248379
VMRS Code	015004045
UNSPSC	25174205

Part Interchanges

Fits Vehicles

Suzuki SX4 Crossover (2012)
Suzuki SX4 (2007-2013)
Suzuki Grand Vitara (2006-2013)
