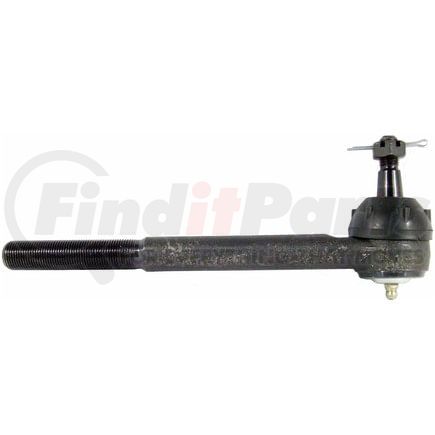

(888) 312-8812 Login SignupDELPHI TA2276 Tie Rod End
MSRP: $21.57
$1649
Save $5.08
Limited availability at this price!
In Stock
Get it by Thursday, Dec 18
DELPHI TA2276 Part Description
DELPHI TA2276 Specifications
Product Attributes
| Position(s) | Outer |
| Item Grade | Standard Replacement |
| Color | Black |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | Yes |
| Dust Boot Included | Yes |
| Width | 40.5 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| Height | 93.70 MM |
| Housing Material | Steel |
| Tube Diameter | 0.748 IN |
| Tube Diameter | 19.00 MM |
| Adjustable | No |
| Greaseable | Yes |
| Weight | 1.71 lb |
| Cone Outside Diameter | 15.00 MM |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Stud Type | Threaded |
| Length - Stud Center to End | 8.740 IN |
| Length - Stud Center to End | 222.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 2 Threads Per Inch | 18 |
| End 1 Threads Per Inch | 20 |
| End 1 Thread Diameter | 0.437 IN |
| End 1 Thread Diameter | 11.11 MM |
| Shank Length | 15.00 MM |
| Stud Length | 15.00 MM |
| Grade Type | Standard |
| Grade | Premium |
| Shank Length | 0.591 IN |
| Stud Length | 0.591 IN |
| Cone Outside Diameter | 0.591 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604270080 |
| VMRS Code | 015004045 |
| UNSPSC | 25174205 |
DELPHI TA2276 Part Interchanges
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-7648 |
| MOOG Chassis Products | ES2249RL, ES2249RLT, ES3462, 101-7648 |
| Mevotech | MES2249RLT, MES3462 |
| General Motors | 12471300 |
| Isuzu | 8-12471-300-0 |
| MAS Industries | T3462 |
| TRW | JTE1365 |
| N/A | 26033089, GES2249RLT, T3462XL |
DELPHI TA2276 Fits Vehicles
- GMC S15 Jimmy (1983-1991)
- Chevrolet S10 Blazer (1983-1994)
- Oldsmobile Bravada (1996-2001)
- GMC Sonoma (1991-2004)
- GMC Jimmy (1992-2005)
- Chevrolet S10 (1994-2004)
- Chevrolet Blazer (1995-2005)
- Isuzu Hombre (1998-2000)
