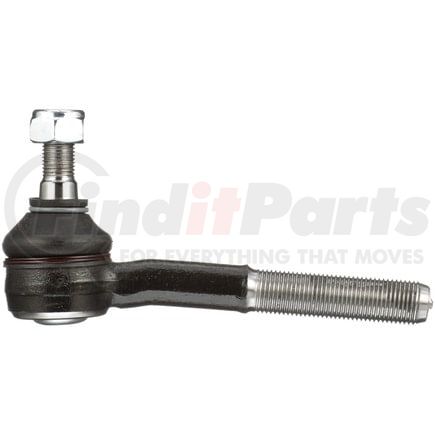

Name: Delphi TA1617 Tie Rod End
SKU: ta1617
Price: 17.49 USD
Availability: InStock

DELPHI part description

Product Description

Tie Rod End

Product Attributes

Position(s)	Inner
Item Grade	Standard Replacement
Color	Black
End 1 Gender	Male
End 2 Gender	Male
Pre-Greased	Yes
Dust Boot Included	Yes
Width	38 MM
Type	Straight
Mounting Hardware Included	Yes
End 2 Thread Diameter	0.630 IN
End 2 Thread Diameter	16.00 MM
Height	68.50 MM
Housing Material	Steel
36	0.630 IN
Tube Diameter	16.00 MM
Adjustable	No
Weight	0.98 lb
Cone Outside Diameter	15.30 MM
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Counterclockwise (Left)
Stud Type	Threaded
End 2 Thread Pitch	1.5 MM
Length Stud Center to End	5.079 IN
Length Stud Center to End	129.00 MM
Dust Boot Material	Rubber
Tie Rod Material	Steel
End 1 Thread Diameter	0.472 IN
End 1 Thread Diameter	12.00 MM
Shank Length	15.30 MM
Stud Length	15.30 MM
Grade Type	Standard
Grade	Premium
Shank Length	0.602 IN
Stud Length	0.602 IN
662	0.602 IN

Additional Information

Harmonized Tariff Code (Schedule B)	8708998175
Country of Origin (Primary)	TR
Harmonized Tariff Code (HTS)	8708998180
Warranty Special	Limited Lifetime
Warranty Special UOM	LF
UPC	00689604245521
VMRS Code	015004070
UNSPSC	25174205

Part Interchanges

Fits Vehicles

Nissan Pickup (1995-1997)
Nissan Pathfinder (1987-1992)
Nissan D21 (1986-1994)
