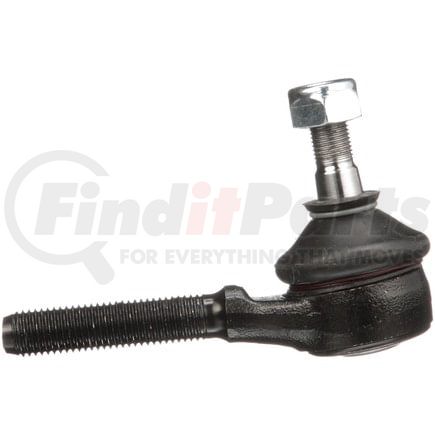

Name: Delphi TA1188 Tie Rod End
SKU: ta1188
Price: 14.49 USD
Availability: InStock

DELPHI part description

Product Description

Tie Rod End

Product Attributes

Item Grade	Standard Replacement
Position(s)	Right Inner
Color	Black
End 1 Gender	Male
End 2 Gender	Male
Pre-Greased	Yes
Grease Fitting Included	No
Dust Boot Included	Yes
Width	34 MM
Type	Straight
Mounting Hardware Included	Yes
End 2 Thread Diameter	0.472 IN
End 2 Thread Diameter	12.00 MM
Height	64.00 MM
Housing Material	Steel
36	0.472 IN
Tube Diameter	12.00 MM
Adjustable	No
Greasable	No
Weight	0.59 lb
Cone Outside Diameter	12.50 MM
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
Stud Type	Threaded
End 2 Thread Pitch	1.5 MM
Length Stud Center to End	3.346 IN
Length Stud Center to End	85.00 MM
Dust Boot Material	Rubber
Tie Rod Material	Steel
End 1 Thread Diameter	0.394 IN
End 1 Thread Diameter	10.00 MM
Shank Length	12.50 MM
Stud Length	12.50 MM
Grade Type	Standard
Grade	Premium
Shank Length	0.492 IN
Stud Length	0.492 IN
662	0.492 IN

Additional Information

Harmonized Tariff Code (Schedule B)	8708998175
Harmonized Tariff Code (HTS)	8708998180
Warranty Special	Limited Lifetime
Warranty Special UOM	LF
Country of Origin (Primary)	TR
UPC	00689604244845
VMRS Code	015004019
UNSPSC	25174205

Part Interchanges

Fits Vehicles

Mercedes-Benz 190E (1984-1993)
Mercedes-Benz 190D (1984-1989)
