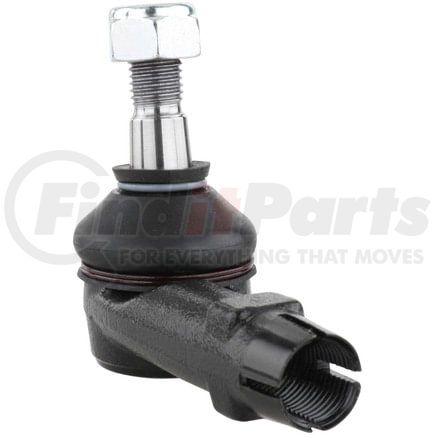

Name: Delphi TA1071 Tie Rod End
SKU: ta1071
Price: 18.49 USD
Availability: InStock

DELPHI part description

Product Description

Tie Rod End

Product Attributes

Position(s)	Left Outer
Item Grade	Standard Replacement
Color	Black
End 2 Gender	Female
Pre-Greased	Yes
Grease Fitting Included	No
Dust Boot Included	Yes
Width	46.7 MM
Type	Bent
Mounting Hardware Included	Yes
End 2 Thread Diameter	0.630 IN
End 2 Thread Diameter	16.00 MM
Height	79.30 MM
Housing Material	Steel
36	0.787 IN
Tube Diameter	20.00 MM
Adjustable	No
Greasable	No
Weight	0.8 lb
Cone Outside Diameter	14.30 MM
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
Stud Type	Threaded
End 2 Thread Pitch	1.5 MM
Length Stud Center to End	2.953 IN
Length Stud Center to End	75.00 MM
Dust Boot Material	Rubber
Tie Rod Material	Steel
End 1 Thread Diameter	0.472 IN
End 1 Thread Diameter	12.00 MM
Shank Length	14.30 MM
Stud Length	14.30 MM
Grade Type	Standard
Grade	Premium
Shank Length	0.563 IN
Stud Length	0.563 IN
662	0.563 IN

Additional Information

Harmonized Tariff Code (Schedule B)	8708998175
Country of Origin (Primary)	TR
Harmonized Tariff Code (HTS)	8708998180
Warranty Special	Limited Lifetime
Warranty Special UOM	LF
UPC	00689604244692
VMRS Code	015004020
UNSPSC	25174205

Part Interchanges

Fits Vehicles

Audi S4 (1992-1994)
Audi V8 Quattro (1990-1994)
Audi S6 (1995-1997)
Audi A6 Quattro (1995-1998)
Audi A6 (1995-1998)
Audi 100 (1989-1994)
Audi 200 Quattro (1989-1991)
Audi 200 (1989-1991)
Audi 100 Quattro (1989-1994)
Audi 5000 (1984-1988)
