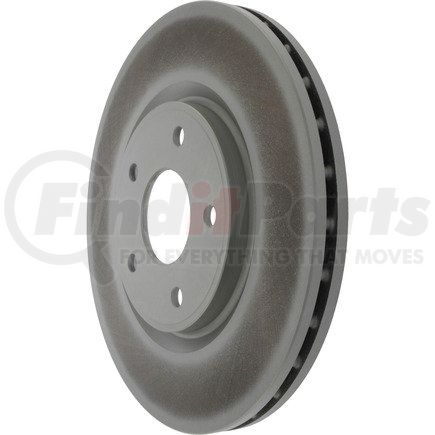

Centric 320.67074 - Centric GCX Rotor with Partial Coating
$8449
MSRP: $92.95
Save: $8.46
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
Product Attributes
| Hat Id [cntrc] Mm | 164.100 |
| Weight [cntrc] Lbs | 21.700 |
| Hat Id [cntrc] In | 6.461 |
| Weight [cntrc] Kgs | 9.840 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Product Grade [cntrc] | Premium |
| Vane Style [cntrc] | Pillar |
| Misc Holes [cntrc] | 0 |
| Disc Mounting [cntrc] | Floating |
| Discard Thickness | 26.400 MM |
| Discard Thickness | 1.039 IN |
| Nominal Thickness | 27.900 MM |
| Nominal Thickness | 1.098 IN |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 38.500 MM |
| Overall Height | 1.516 IN |
| Outside Diameter | 330.000 MM |
| Outside Diameter | 12.992 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 2.854 IN |
| Center Hole Diameter | 72.500 MM |
| Mounting Bolt Hole Circle Diameter | 127.000 MM |
| Mounting Bolt Hole Circle Diameter | 5.000 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 14.500 MM |
| Stud/Lug Hole Diameter | 0.571 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590253368 |
Part Interchanges
CENTRIC 320.67074 Cross Reference
We have 3 alternatives for the 320.67074 by CENTRIC:
