CENTRIC 320.66045 Part Description
Manufacturer
Product Description

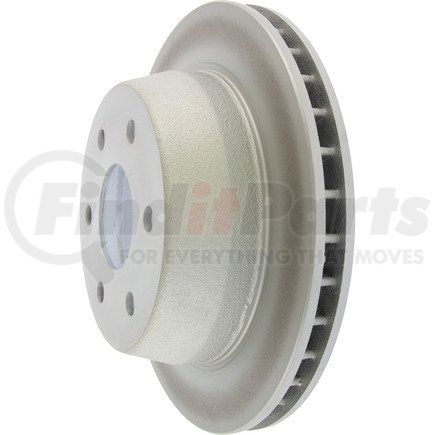

Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
CENTRIC 320.66045 Specifications
Product Attributes
| Max Pb Drum Dia [cntrc] In | 8.331 |
| Weight [cntrc] Kgs | 9.200 |
| Max Pb Drum Dia [cntrc] Mm | 211.600 |
| Disc Mounting [cntrc] | Floating / DIH |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Lbs | 20.250 |
| Misc Holes [cntrc] | 0 |
| Product Grade [cntrc] | Premium |
| Vane Style [cntrc] | Straight |
| Discard Thickness | 1.122 IN |
| Discard Thickness | 28.500 MM |
| Nominal Thickness | 30.000 MM |
| Nominal Thickness | 1.181 IN |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 95.500 MM |
| Overall Height | 3.760 IN |
| Outside Diameter | 329.700 MM |
| Outside Diameter | 12.980 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Nominal Drum Diameter | 210.100 MM |
| Nominal Drum Diameter | 8.272 IN |
| Bearings Included | No |
| Center Hole Diameter | 3.094 IN |
| Center Hole Diameter | 78.600 MM |
| Mounting Bolt Hole Circle Diameter | 139.700 MM |
| Mounting Bolt Hole Circle Diameter | 5.500 IN |
| Stud/Lug Hole Quantity | 6 |
| Stud/Lug Hole Diameter | 16.500 MM |
| Stud/Lug Hole Diameter | 0.650 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590253009 |
