Centric 320.65098 - Centric GCX Rotor with Partial Coating
$15799
MSRP: $184.21
Save: $26.22
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description

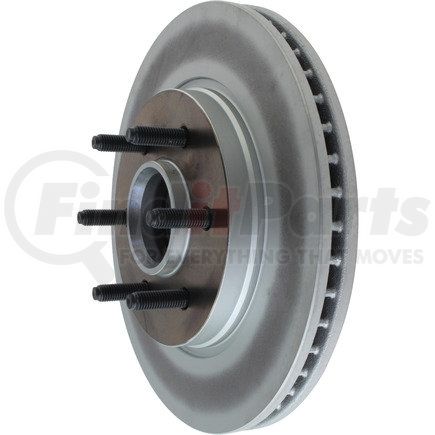

Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
Product Attributes
| Weight [cntrc] Lbs | 36.500 |
| Disc Mounting [cntrc] | Hub & Rotor |
| Product Grade [cntrc] | Premium |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Kgs | 16.590 |
| Misc Holes [cntrc] | 0 |
| Inner Bearing # [cntrc] | 410.65001 |
| Vane Style [cntrc] | Straight |
| Discard Thickness | 28.500 MM |
| Discard Thickness | 1.122 IN |
| Nominal Thickness | 30.000 MM |
| Nominal Thickness | 1.181 IN |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Stud Thread Diameter | 14.000 MM |
| Overall Height | 92.200 MM |
| Overall Height | 3.630 IN |
| ABS Tone Ring Included | Yes |
| Surface Type | Smooth |
| 54 | 330.000 MM |
| Rotor Outside Diameter | 12.992 in |
| Solid Or Vented Type Rotor | Vented |
| Bolt Thread Pitch | 2.000 MM |
| Bearings Included | No |
| Center Hole Diameter | 86.700 MM |
| Center Hole Diameter | 3.413 IN |
| Mounting Bolt Hole Circle Diameter | 135.000 MM |
| Mounting Bolt Hole Circle Diameter | 5.315 IN |
| Stud/Lug Hole Quantity | 6 |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590252712 |
Part Interchanges
CENTRIC 320.65098 Cross Reference
We have 5 alternatives for the 320.65098 by CENTRIC:
