CENTRIC 320.63067 Part Description
Manufacturer
Product Description

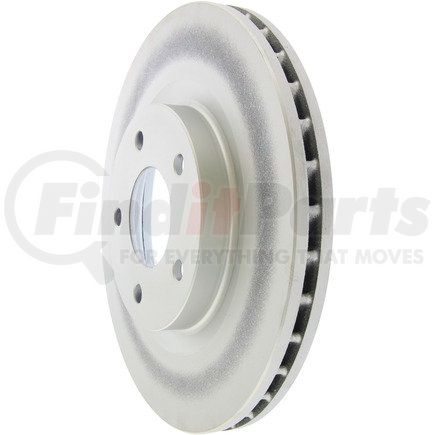

Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
CENTRIC 320.63067 Specifications
Product Attributes
| Hat Id [cntrc] In | 5.713 |
| Disc Mounting [cntrc] | Floating |
| Vane Style [cntrc] | Pillar |
| Misc Holes [cntrc] | 0 |
| Weight [cntrc] Kgs | 7.110 |
| Weight [cntrc] Lbs | 15.650 |
| Hat Id [cntrc] Mm | 145.100 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 0.961 IN |
| Discard Thickness | 24.400 MM |
| Nominal Thickness | 26.000 MM |
| Nominal Thickness | 1.024 IN |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 45.700 MM |
| Overall Height | 1.799 IN |
| Outside Diameter | 294.000 MM |
| Outside Diameter | 11.575 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 69.000 MM |
| Center Hole Diameter | 2.717 IN |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 13.150 MM |
| Stud/Lug Hole Diameter | 0.518 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590252460 |
