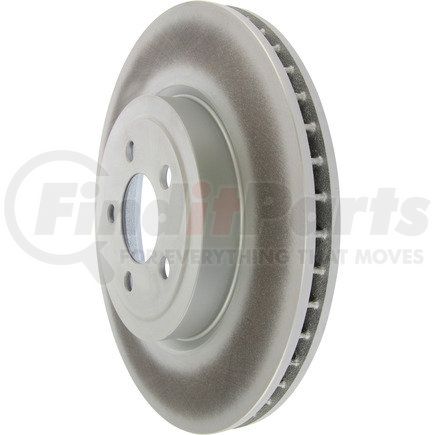

Centric 320.63061 - Centric GCX Rotor with Partial Coating
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CENTRIC part description
Product Description
Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
Product Attributes
| Weight [cntrc] Kgs | 10.450 |
| Hat Id [cntrc] Mm | 158.000 |
| Hat Id [cntrc] In | 6.220 |
| Disc Mounting [cntrc] | Floating |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Product Grade [cntrc] | Premium |
| Misc Holes [cntrc] | 0 |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Lbs | 23.000 |
| Discard Thickness | 1.043 IN |
| Discard Thickness | 26.500 MM |
| Nominal Thickness | 28.100 MM |
| Nominal Thickness | 1.106 IN |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 54.800 MM |
| Overall Height | 2.157 IN |
| Outside Diameter | 13.583 IN |
| Outside Diameter | 345.000 MM |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 72.600 MM |
| Center Hole Diameter | 2.858 IN |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 16.900 MM |
| Stud/Lug Hole Diameter | 0.665 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590252439 |
Part Interchanges
CENTRIC 320.63061 Cross Reference
We have 4 alternatives for the 320.63061 by CENTRIC:
