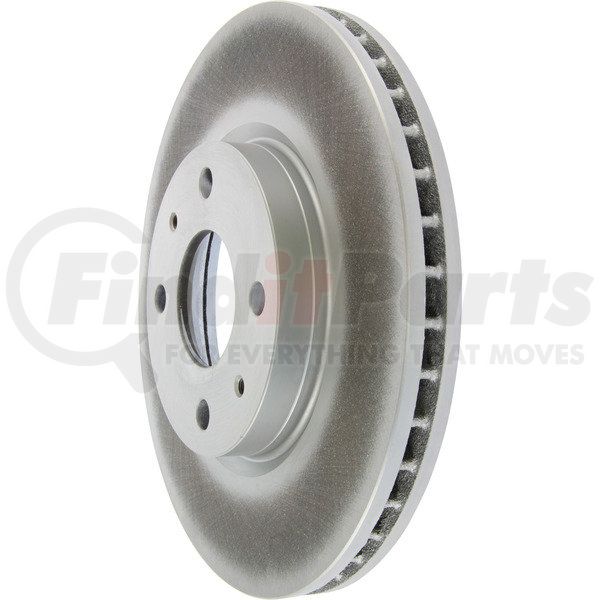

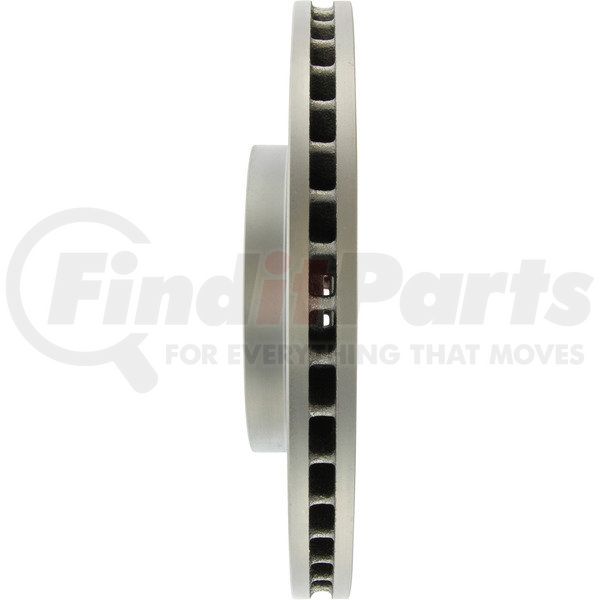

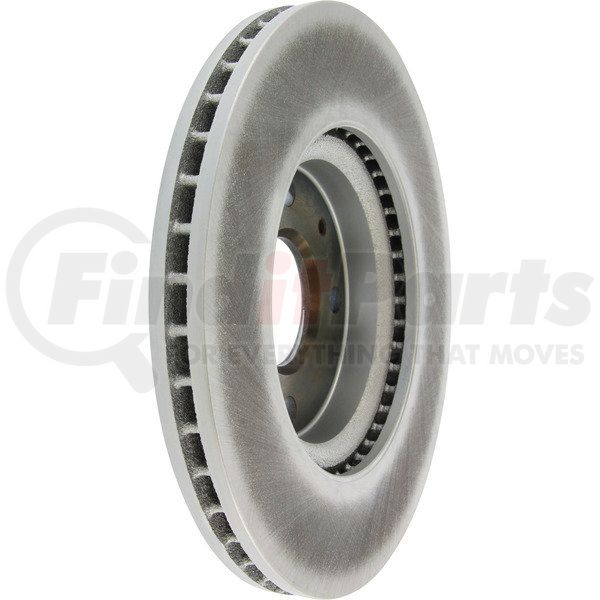

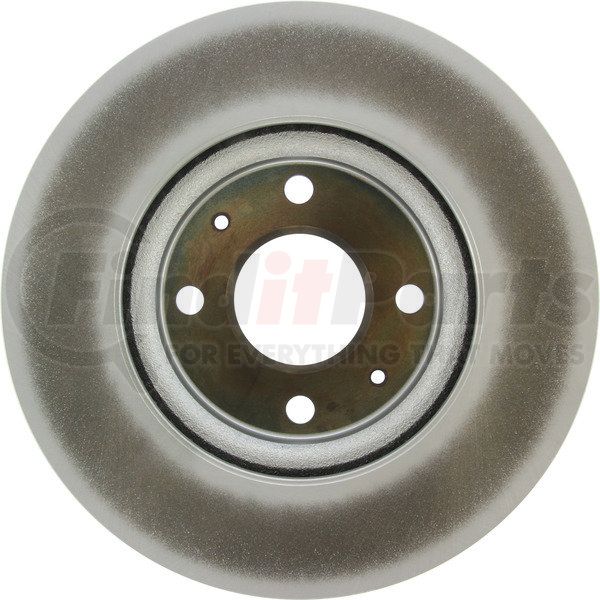

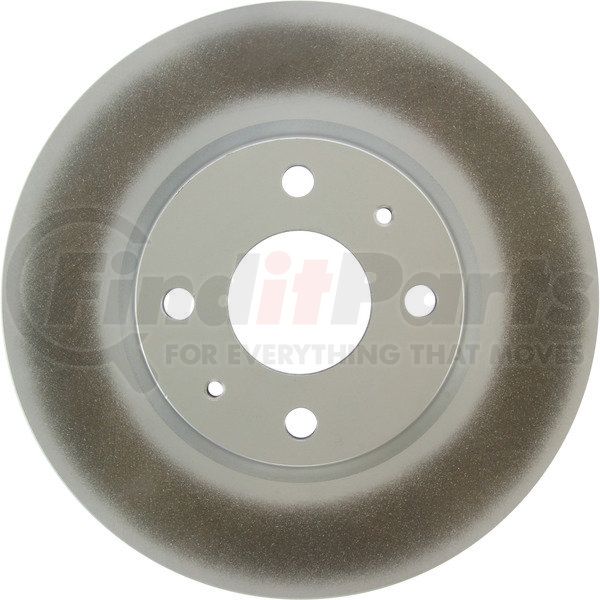

Centric 320.61093 - Centric GCX Rotor with Partial Coating
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CENTRIC part description
Product Description
Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
Product Attributes
| Product Grade [cntrc] | Premium |
| Disc Mounting [cntrc] | Floating |
| Weight [cntrc] Lbs | 15.400 |
| Misc Holes [cntrc] | 2 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Kgs | 7.000 |
| Vane Style [cntrc] | Straight |
| Discard Thickness | 23.000 MM |
| Discard Thickness | 0.906 IN |
| Nominal Thickness | 25.000 MM |
| Nominal Thickness | 0.984 IN |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 45.000 MM |
| Overall Height | 1.772 IN |
| Outside Diameter | 275.400 MM |
| Outside Diameter | 10.843 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 2.504 IN |
| Center Hole Diameter | 63.600 MM |
| Mounting Bolt Hole Circle Diameter | 108.000 MM |
| Mounting Bolt Hole Circle Diameter | 4.252 IN |
| Stud/Lug Hole Quantity | 4 |
| Stud/Lug Hole Diameter | 13.700 MM |
| Stud/Lug Hole Diameter | 0.539 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590252040 |
Part Interchanges
CENTRIC 320.61093 Cross Reference
We have 2 alternatives for the 320.61093 by CENTRIC:
