Centric 320.61091 - Centric GCX Rotor with Partial Coating
$5849
MSRP: $61.59
Save: $3.10
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description

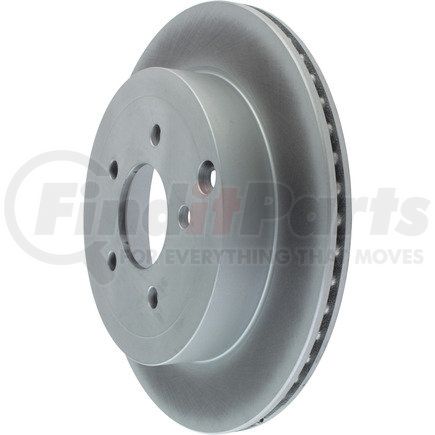

Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
Product Attributes
| Max Pb Drum Dia [cntrc] In | 7.520 |
| Disc Mounting [cntrc] | Floating / DIH |
| Misc Holes [cntrc] | 1 |
| Weight [cntrc] Lbs | 15.070 |
| Weight [cntrc] Kgs | 6.850 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Product Grade [cntrc] | Premium |
| Vane Style [cntrc] | Straight |
| Max Pb Drum Dia [cntrc] Mm | 191.000 |
| Discard Thickness | 0.630 IN |
| Discard Thickness | 16.000 MM |
| Nominal Thickness | 0.709 IN |
| Nominal Thickness | 18.000 MM |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 56.000 MM |
| Overall Height | 2.205 IN |
| Outside Diameter | 11.890 IN |
| Outside Diameter | 302.000 MM |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Nominal Drum Diameter | 7.480 IN |
| Nominal Drum Diameter | 190.000 MM |
| Bearings Included | No |
| Center Hole Diameter | 72.000 MM |
| Center Hole Diameter | 2.835 IN |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 14.000 MM |
| Stud/Lug Hole Diameter | 0.551 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590252033 |
Part Interchanges
CENTRIC 320.61091 Cross Reference
We have 3 alternatives for the 320.61091 by CENTRIC:
