CENTRIC 320.47017 Part Description
Manufacturer
Product Description

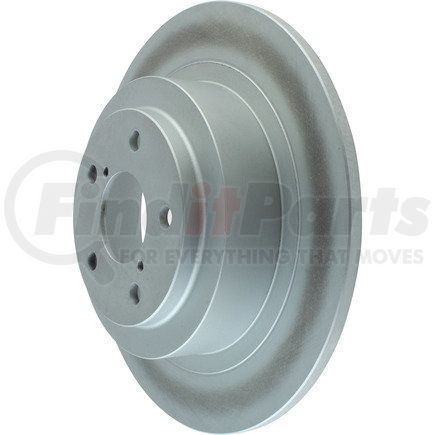

Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
CENTRIC 320.47017 Specifications
Product Attributes
| Max Pb Drum Dia [cntrc] In | 6.732 |
| Weight [cntrc] Kgs | 5.000 |
| Weight [cntrc] Lbs | 11.000 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Max Pb Drum Dia [cntrc] Mm | 171.000 |
| Product Grade [cntrc] | Premium |
| Disc Mounting [cntrc] | Floating / DIH |
| Misc Holes [cntrc] | 2 |
| Discard Thickness | 8.500 MM |
| Discard Thickness | 0.335 IN |
| Nominal Thickness | 0.394 IN |
| Nominal Thickness | 10.000 MM |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 65.800 MM |
| Overall Height | 2.591 IN |
| Outside Diameter | 11.406 IN |
| Outside Diameter | 289.700 MM |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Nominal Drum Diameter | 170.000 MM |
| Nominal Drum Diameter | 6.693 IN |
| Bearings Included | No |
| Center Hole Diameter | 58.000 MM |
| Center Hole Diameter | 2.283 IN |
| Mounting Bolt Hole Circle Diameter | 100.000 MM |
| Mounting Bolt Hole Circle Diameter | 3.937 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 12.900 MM |
| Stud/Lug Hole Diameter | 0.508 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590251531 |
CENTRIC 320.47017 Part Interchanges
| Brand | Part Number |
|---|---|
| Raybestos Brakes | 96937, 96937FZN, 96937R |
| N/A | 90013032, HC31273X |
