CENTRIC part description
Product Description

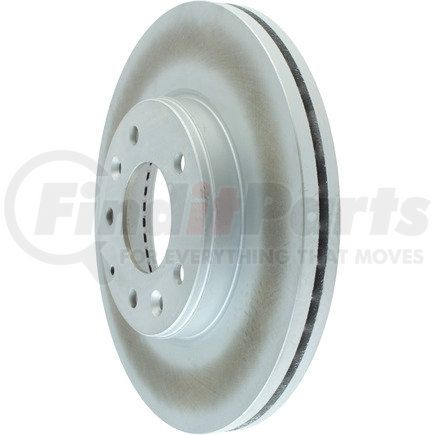

Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
Product Attributes
| Weight [cntrc] Kgs | 6.710 |
| Vane Style [cntrc] | Straight |
| Misc Holes [cntrc] | 3 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Lbs | 14.760 |
| Product Grade [cntrc] | Premium |
| Disc Mounting [cntrc] | Floating |
| Discard Thickness | 23.000 MM |
| Discard Thickness | 0.906 IN |
| Nominal Thickness | 25.000 MM |
| Nominal Thickness | 0.984 IN |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 48.800 MM |
| Overall Height | 1.921 IN |
| Outside Diameter | 11.102 IN |
| Outside Diameter | 282.000 MM |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 2.823 IN |
| Center Hole Diameter | 71.700 MM |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 12.930 MM |
| Stud/Lug Hole Diameter | 0.509 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590251418 |
Part Interchanges
CENTRIC 320.45063 Cross Reference
We have 3 alternatives for the 320.45063 by CENTRIC:
