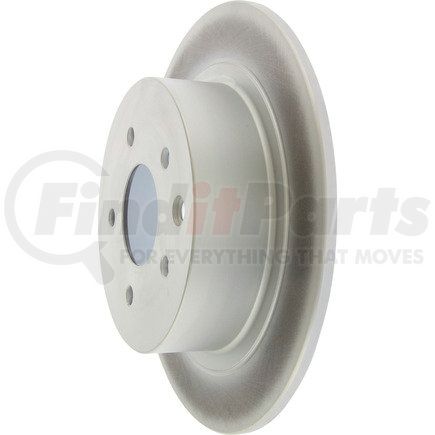

Centric 320.42073 - Centric GCX Rotor with Partial Coating
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CENTRIC part description
Product Description
Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
Product Attributes
| Disc Mounting [cntrc] | Floating / DIH |
| Hat Id [cntrc] In | 6.157 |
| Hat Id [cntrc] Mm | 156.400 |
| Product Grade [cntrc] | Premium |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Kgs | 4.770 |
| Weight [cntrc] Lbs | 10.500 |
| Misc Holes [cntrc] | 1 |
| Discard Thickness | 0.315 IN |
| Discard Thickness | 8.000 MM |
| Nominal Thickness | 0.354 IN |
| Nominal Thickness | 9.000 MM |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 62.000 MM |
| Overall Height | 2.441 IN |
| Outside Diameter | 291.700 MM |
| Outside Diameter | 11.484 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Nominal Drum Diameter | 170.800 MM |
| Nominal Drum Diameter | 6.724 IN |
| Bearings Included | No |
| Center Hole Diameter | 68.000 MM |
| Center Hole Diameter | 2.677 IN |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 12.900 MM |
| Stud/Lug Hole Diameter | 0.508 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590250749 |
Part Interchanges
CENTRIC 320.42073 Cross Reference
We have 3 alternatives for the 320.42073 by CENTRIC:
