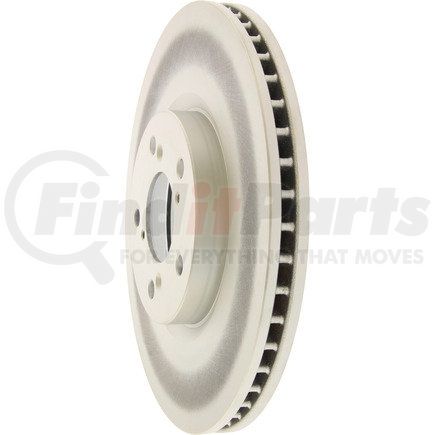

Centric 320.40071 - Centric GCX Rotor with Partial Coating
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CENTRIC part description
Product Description
Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
Product Attributes
| Hat Id [cntrc] In | 6.016 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Kgs | 10.250 |
| Product Grade [cntrc] | Premium |
| Weight [cntrc] Lbs | 22.550 |
| Disc Mounting [cntrc] | Floating |
| Misc Holes [cntrc] | 4 |
| Vane Style [cntrc] | Straight |
| Hat Id [cntrc] Mm | 152.800 |
| Discard Thickness | 26.000 MM |
| Discard Thickness | 1.024 IN |
| Nominal Thickness | 1.102 IN |
| Nominal Thickness | 28.000 MM |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 47.300 MM |
| Overall Height | 1.862 IN |
| Outside Diameter | 12.992 IN |
| Outside Diameter | 330.000 MM |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 2.760 IN |
| Center Hole Diameter | 70.100 MM |
| Mounting Bolt Hole Circle Diameter | 120.000 MM |
| Mounting Bolt Hole Circle Diameter | 4.724 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 14.500 MM |
| Stud/Lug Hole Diameter | 0.571 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590250602 |
Part Interchanges
CENTRIC 320.40071 Cross Reference
We have 3 alternatives for the 320.40071 by CENTRIC:
