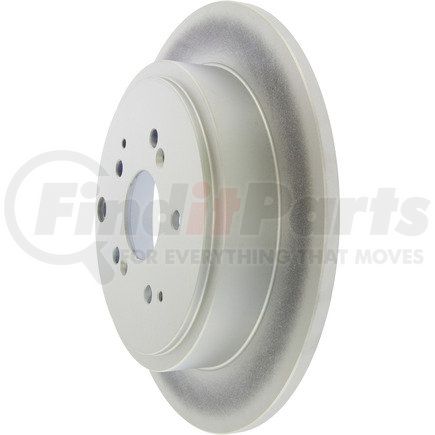

Centric 320.40053 - Centric GCX Rotor with Partial Coating
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CENTRIC part description
Product Description
Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
Product Attributes
| Misc Holes [cntrc] | 5 |
| Disc Mounting [cntrc] | Floating / DIH |
| Max Pb Drum Dia [cntrc] In | 8.307 |
| Weight [cntrc] Kgs | 5.910 |
| Weight [cntrc] Lbs | 13.000 |
| Product Grade [cntrc] | Premium |
| Max Pb Drum Dia [cntrc] Mm | 211.000 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Discard Thickness | 9.500 MM |
| Discard Thickness | 0.374 IN |
| Nominal Thickness | 11.100 MM |
| Nominal Thickness | 0.437 IN |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 55.800 MM |
| Overall Height | 2.197 IN |
| Outside Diameter | 12.323 IN |
| Outside Diameter | 313.000 MM |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Nominal Drum Diameter | 8.268 IN |
| Nominal Drum Diameter | 210.000 MM |
| Bearings Included | No |
| Center Hole Diameter | 64.100 MM |
| Center Hole Diameter | 2.524 IN |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 12.600 MM |
| Stud/Lug Hole Diameter | 0.496 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590250480 |
Part Interchanges
CENTRIC 320.40053 Cross Reference
We have 3 alternatives for the 320.40053 by CENTRIC:
