Centric 320.40047 - Centric GCX Rotor with Partial Coating
$2799
MSRP: $37.16
Save: $9.17
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description

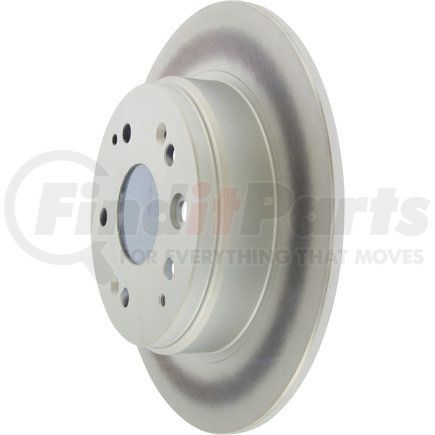

Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
Product Attributes
| Disc Mounting [cntrc] | Floating / DIH |
| Weight [cntrc] Lbs | 9.250 |
| Weight [cntrc] Kgs | 4.200 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Misc Holes [cntrc] | 5 |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 7.500 MM |
| Discard Thickness | 0.295 IN |
| Nominal Thickness | 9.000 MM |
| Nominal Thickness | 0.354 IN |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 58.600 MM |
| Overall Height | 2.307 IN |
| Outside Diameter | 282.500 MM |
| Outside Diameter | 11.122 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Nominal Drum Diameter | 6.693 IN |
| Nominal Drum Diameter | 170.000 MM |
| Bearings Included | No |
| Center Hole Diameter | 2.520 IN |
| Center Hole Diameter | 64.000 MM |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 12.600 MM |
| Stud/Lug Hole Diameter | 0.496 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590250473 |
Part Interchanges
CENTRIC 320.40047 Cross Reference
We have 3 alternatives for the 320.40047 by CENTRIC:
