GATES G475911212S Part Description
Manufacturer
Product Description

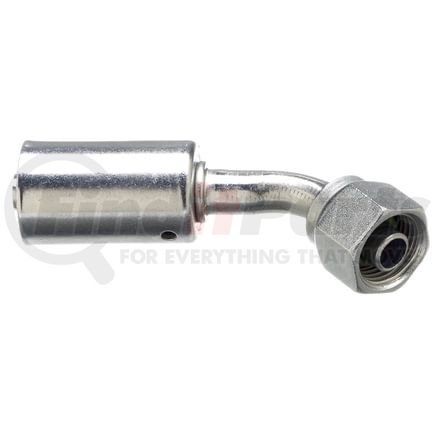

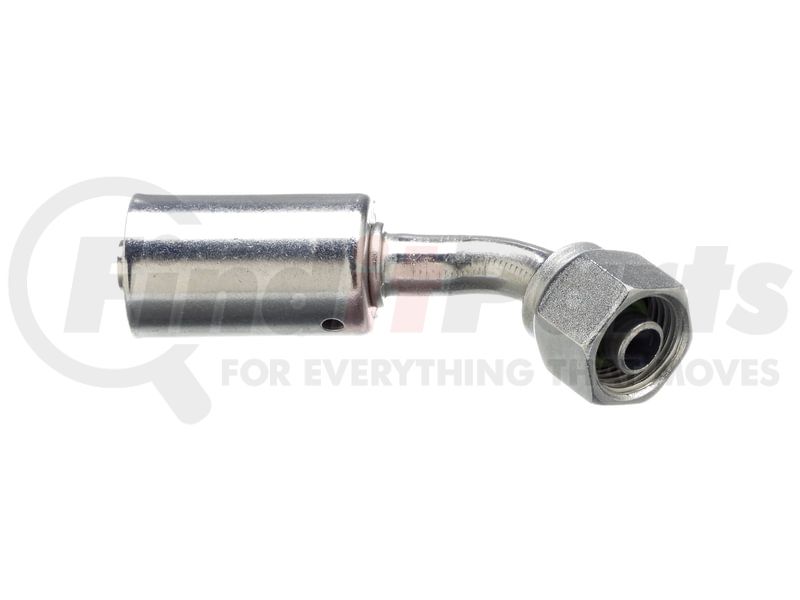

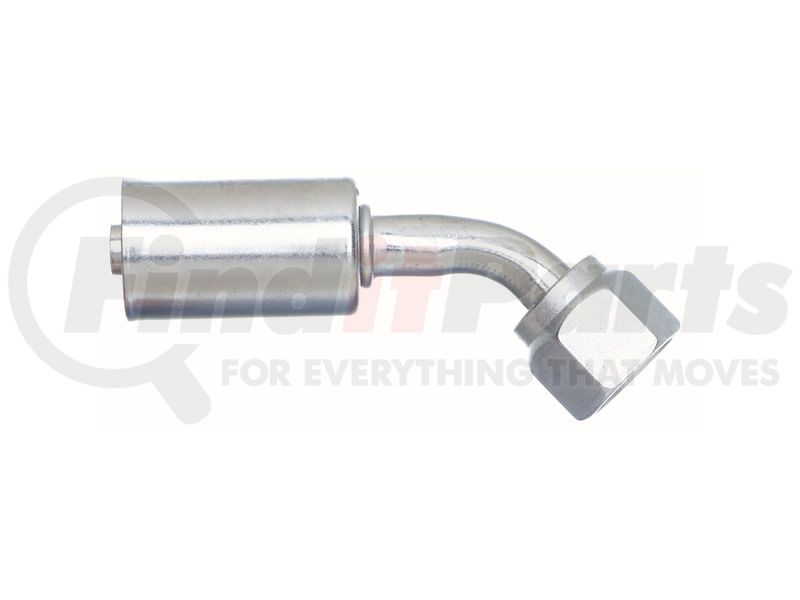

Female SAE Tube O-Ring Nut Swivel - 45 Bent Tube - Steel (PolarSeal II ACB)
Features & Benefits
- Offered in many of the most popular styles of aluminum couplings with select styles available in zinc-plated steel
- Available in various bend angles and common stem sizes -6, -8, -10, and -12
- Utilize Gates PolarSeal Portable Crimper, or one of Gates bench top crimpers, to make crimped AC assemblies using ACB couplings and PolarSeal II hose
GATES G475911212S Specifications
Product Attributes

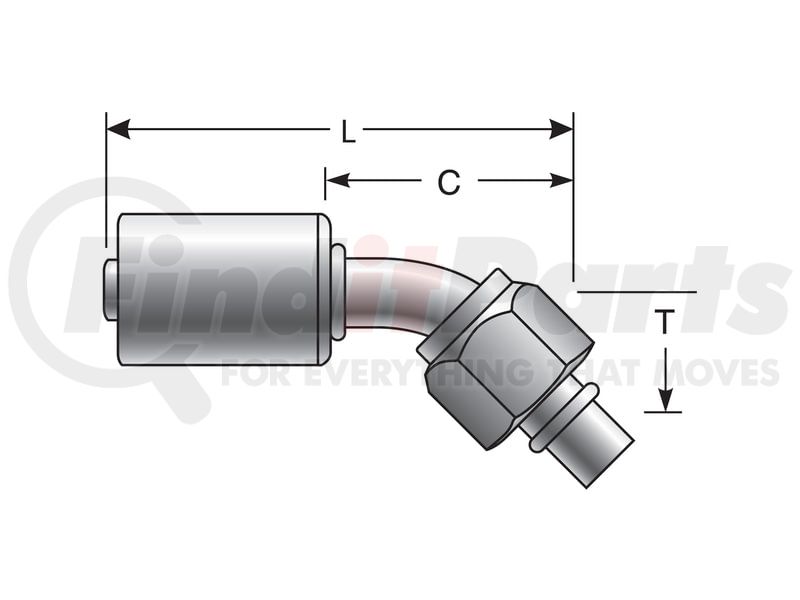

| Coupling Description | PolarSeal II ACB Female SAE Tube O-Ring Nut Swivel - 45 Bent Tube - Steel |
| Industrial Description | 12ACB-12FTON45-S |
| Thread Size | 1 1/16-14 |
| Inside Diameter | .625 IN |
| Hydraulic Hose Recommendation | Gates PolarSeal II Refrigerant Hose |
| Drop Length | .94 IN |
| Cut-Off Length | 2.69 IN |
| Length | 3.94 IN |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| UPC | 00770075725268 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G475911212S Part Interchanges
| Brand | Part Number |
|---|---|
| NAPA | G47591-1212S |
