BCA WE61310 - Gen 3 Wheel Hub Assembly
$28199
In stock
limited availability at this price!
. Learn more
BCA part description
Product Description

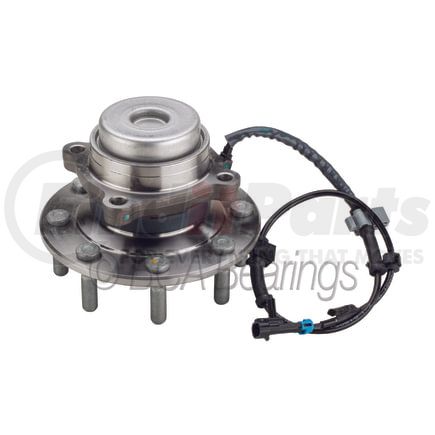

Gen 3 Wheel Hub Assembly
Features & Benefits
- All BCA applications that require ABS functionality utilize our custom-designed seals that are molded over with magnetic encoders (if required) to ensure proper ABS operation.
- Forged-steel construction provides the toughness and durability required for even the harshest applications.
- Rolling element cages reduce friction by keeping rolling elements spaced correctly, preventing damage and resulting in reduced operational temperatures.
- Application-specific components to ensure proper connection and performance of the ABS module and sensors.
- Pre-lubricated bearings, sealed for life with specialized grease provide longer life and a wider range of operational temperatures.
- Application-specific engineering reduces noise, vibration and harshness (NVH).
Product Attributes
| 10010 | 105.8 MM |
| 10119 | 140 MM |
| 10120 | 14 MM |
| 10495 | 2 |
| 10496 | 1.5 MM |
| Flange Included | Yes |
| Flange Bolt Hole Quantity | 4 |
| Wheel Stud Size | 14 MM |
| Wheel Pilot Diameter | 116.7 MM |
| Brake Pilot Diameter | 117.9 MM |
| Wheel Stud Quantity | 8 |
| Flange Shape | Square |
| Anti Lock Braking System | Yes |
| Anti Lock Braking System Type | Tone Ring with Sensor |
| Bearing Generation | Gen 3 |
| Drive Type | Non-driven |
| Bearing Type | Taper |
| Flange Offset | 2.567 IN |
| Weight | 8.81 Kg |
| Flange Diameter | 199.3 MM |
| Wheel Stud Thread Pitch | 1.5 MM |
| 9555 | 165.1 MM |
Additional Information
| Country of Origin (Primary) | KR |
| Harmonized Tariff Code (Schedule B) | 8708995800 |
| Harmonized Tariff Code (HTS) | 8708995800 |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| UPC | 00662810613100 |
| VMRS Code | 018005000 |
Part Interchanges
- Timken HA590353
- General Motors 84327583
- ACDelco FW353
- Schaeffler FW760
- Drive Tech America NT515060
- Centric Parts 407.66004E
- General Motors 23147291
- Dorman 951-891
- Centric Parts 407.66004
- General Motors 25853898
- DuraGo 29515060
- Schaeffler 102189
- ACDelco 515060
- GSP 106060
- General Motors 18061148
- Raybestos Brakes 715060
- GMB 7300337
- General Motors 84231008
- Mevotech H515060
- DT Components 515060
- Autopart International 141149085
- MOOG Chassis Products 515060
- Power Train PT515060
- SKF BR930353
Fits Vehicles
- Suzuki Aerio (2002)
The Bearing Corporation of America (BCA®) is backed by over 100 years of experience supplying the American market with top-of-the-line wheel-end solutions. Headquartered in a 670,000-square-foot state-of-the-art facility in Illinois, BCA is renowned as the top supplier of automotive and medium-duty hub assemblies, seals, and bearings for various domestic and foreign applications. BCA products are designed for technicians that need replacement parts that fit right the first time they are installed. These OE solutions, which provide an exact fit, superior performance, unmatched durability, and longer service life, are products of BCA’s commitment to modern technological advancements and the brand’s design philosophy that focuses on performance.
