A-1 CARDONE part description

Product Description

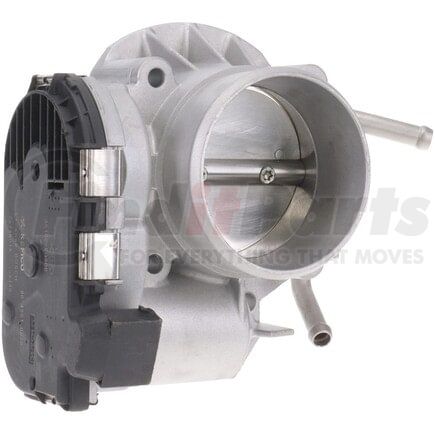

Fuel Injection Throttle Body

Application Summary

Hyundai Sonata 2015-11; Kia Optima 2016-11

Features & Benefits

  • Each unit is disassembled and meticulously inspected. Each component is inspected, remanufactured or replaced resulting in reliable and consistent performance.
  • A specialized component cleaning process prevents the throttle bore surface from being deformed, ensuring optimum air flow.
  • The high and low integrated throttle position sensors are tested to match O.E. characteristics throughout the entire operational range.
  • Final assemblies are tested for all critical functions, including response time and air flow at multiple points.
  • Each unit is guaranteed to function like the original.
  • As a remanufactured Original Equipment part, this unit guarantees a perfect vehicle fit.
  • Our remanufacturing process is earth-friendly, as it reduces the energy and raw material needed to make a new part by 80%.

Throttle Body, Throttle, Fuel Injection Throttle Body, Intake, Air Intake, Throttle Valve, Carburetor, Manifold, TBI, ETB, Electronic Throttle Body, Mechanical Throttle Body, Throttle Bore, Throttle Blade

Product Attributes

Package Contents Electronic Throttle Body; Instruction Sheet
Product Condition Remanufactured
Housing Material Aluminum
Housing Color/Finish Gray/Unfinished
Throttle Body Actuation Type Electric
Throttle Body Inlet Shape Round
Throttle Body Outlet Shape Round
E-waste Yes
FAQs When an Electronic Throttle Body fails, the controlling module will illuminate the MIL/SES/CEL, the module will then activate a fail-safe mode operation and gradually reduce the engine’s speed back to an idle rpm.
Features and Benefits The high and low integrated throttle position sensors are tested to match OE characteristics throughout the entire operational range.
Adjustable No
Bore Diameter 2.365 IN
Bore Diameter 60 MM
Fuel Injectors Included No
Fuel System Grade Regular
Fuel System Type Gas
Idle Air Control Motor Included No
Inlet Diameter 70 MM
Inlet Diameter 2.759 IN
Inlet Type Circle
Mounting Hardware Included No
Outlet Diameter 2.444 IN
Outlet Diameter 62 MM
Outlet Quantity 1
Outlet Type Circle
Throttle Body Finish Natural
Throttle Body Material Plastic; Steel; Aluminum
Throttle Body Spacer Included No
Throttle Body Type Electric
Throttle Position Sensor Included Yes
Venturi Quantity 1
Connector Shape Oval
Gaskets or Seal Included No
Terminal Type Pin
Contains Electronic Components Circuit Board
Does it require SDS No
Is Item A Chemical No
Is Or Contains A Battery No
Is Or Contains A Bulb No
Is Prop Sixty Five Affected No
Is the item CARB affected No

Additional Information

Remanufactured Part Y
Warranty Distance 18000
Warranty Distance UOM DH
Warranty Special UOM TX
Warranty Time 12
Warranty Time UOM MO
Country of Origin (Primary) US
Harmonized Tariff Code (HTS) 8481809020
Harmonized Tariff Code (Schedule B) 8481809035
Canadian Harmonizing Tariff Code 8481800081
UPC 00884548215719

Part Interchanges

Fits Vehicles

  • Kia Optima (2011-2016)
  • Hyundai Sonata (2011-2015)
