HELLA 003399061 Part Description
Manufacturer
Product Description

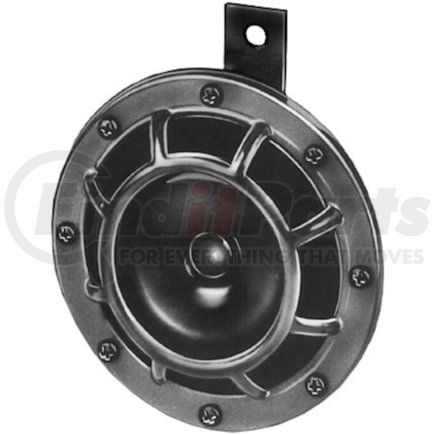

HELLA Horn 003399061
Features & Benefits
- With moisture protection
- Enhances road safety by emitting a 335 Hz tone, providing clear and audible alerts in all conditions.
- Delivers maximum awareness with a volume output ranging from 108 dB(A) to 118 dB(A), ensuring audibility.
- Ensures long-term reliability with robust construction engineered to withstand vibration and harsh conditions.
- Facilitates fast identification and installation with concise short codes, streamlining maintenance and replacement.
- Designed for universal compatibility, this part fits most modern vehicles, simplifying the installation process.
HELLA 003399061 Specifications
Product Attributes
| Supplementary Article/Info 2 | with moisture protection |
| Signal | Low Tone |
| Registration Type | ECE Approved |
| Mounting Type | with 6.3 mm Blade Terminal Contacts, Open |
| Interference suppressed | . |
| Width [mm] | 125 |
| Protection Type (IP Code) | X4K |
| Sound Level [dB(A)] | 110 |
| Overall Height [mm] | 135 |
| Power Consumption [w] | 84 |
| Voltage [V] | 24 |
| Temperature Range To [°c] | 90 |
| Diameter [mm] | 123 |
| Frequency Range [hz] | 375 |
| Test Mark | ECE |
| Depth [mm] | 85 |
| Assy./disassy. By Qualified Personnel Required! | . |
| Temperature Range From [°c] | -40 |
| Housing Colour | Black |
| Special Purpose Vehicle | for Special-Purpose Vehicles |
| Measurements [cm] | 8.5 x 12.5 |
| Homologation | ECE-R28 |
| Diameter [in] | 4.84 |
| Frequency Range From [hz] | 375 |
| Bracket | M8 Mounting Screw |
| Diameter [cm] | 12.3 |
| Set includes | (1) Low-Tone Disc Horn, Mounting Brackets, Step-by-Step Mounting Instructions |
| Protection | IP65 |
| Overall Height [in] | 5.31 |
| Ip Rating | X7 |
| Temperature range to [°F] | 167 |
| Voltage [VDC] | 24 |
| Assy/Disassy by Qualified Personnel Required! | . |
| Housing Color | Black |
| Power Consumption [a] | 3.5 |
| Depth [in] | 3.35 |
| Vehicle configuration line / variant | for Special-Purpose Vehicles |
| ECE Regulation | R28 |
| Supplementary Article/Supplementary Info 2 | with Condensor |
| Operating Mode | Electric |
| California Proposition 65 Required | No |
| Width [in] | 4.92 |
| Wattage [W] | 84 |
| Grade Type | Standard Replacement |
| Quantity | 1 |
| Temperature range from [°F] | -40 |
| Voltage | 24.00 2H |
| Color | Black |
| Decibel Rating | 110.00 |
| Terminal Type | Blade |
| Mounting Hardware Included | Yes |
| Connector Quantity | 1 |
| Mount Type | Bracket Mounting |
| Terminal Quantity | 2 |
| Mounting Bracket Included | Yes |
Additional Information
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | IN |
| Harmonized Tariff Code (HTS) | 8512300020 |
| UPC | 04082300052541 |
HELLA 003399061 Cross References
| Brand | Part Number |
|---|---|
| Bosch | 0 320 226 002 |
| Evobus | 003 542 45 20, 003 542 47 20, 0035420320, A0035424520, A0035424720 |
| John Deere | AT395985 |
| Mercedes-Benz | 003 542 03 20, 003 542 45 20, 003 542 47 20, 990 542 39 00, A 003 542 03 20, A 003 542 45 20, A 003 542 47 20, A 990 542 39 00 |
| N/A | A 990 542 39 00, 1 453 126 1, 8302313, 2516-9016, 81.25301.6045, 14531261, 1 067 552 5, 6 204 592, 00092912, 5050022291, 94700092912, 14531261-0, 2590-12-195-8586, 81.25301-6045, 1112 388 4, 42106H9110, 407701, A2V01046240 |
| Volvo | 1 453 126 1 |
| Volvo Truck | 1 453 126 1 |
