(888) 312-8812 Login SignupRAYBESTOS 681952R Raybestos R-Line Brake Rotor
$16299
Limited availability at this price!
In Stock
Get it by Monday, Feb 23
RAYBESTOS 681952R Part Description
Manufacturer
Product Description

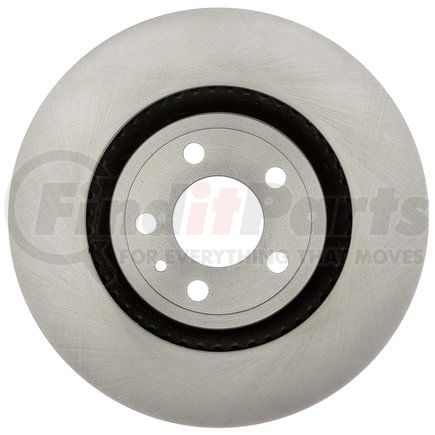

Raybestos R-Line Brake Rotor
Application Summary
2020-2015 Ford Mustang Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 681952R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.795 IN |
| Center Hole Diameter | 71 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.201 IN |
| Discard Thickness | 30.5 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 8.772 IN |
| Inside Diameter | 222.8 MM |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.622 IN |
| Mounting Bolt Hole Diameter | 15.8 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.26 IN |
| Nominal Thickness | 32 MM |
| Outside Diameter | 13.909 IN |
| Outside Diameter | 353.3 MM |
| Overall Height | 2.52 IN |
| Overall Height | 64 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213192711 |
RAYBESTOS 681952R Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | YH524204P, YH524205P |
| AUTOZONE | 75025, 75025DG, 75025DL |
| BRAKEBEST | 621779RGS, 681952, 681952PER, 681952R |
| CENTRIC | 121.61114, 125.61114, 126.61114CSL, 126.61114CSR, 126.61114SL, 126.61114SR, 127.61114L, 127.61114R, 128.61114L, 128.61114R, 320.61114C |
| Centric Parts | 121.61114, 125.61114, 126.61114CSL, 126.61114CSR, 126.61114SL, 126.61114SR, 127.61114L, 127.61114R, 128.61114L, 128.61114R, 320.61114C |
| DURA CORP | BR901376 |
| DuraGo | BR901376 |
| FORD | FR3Z1125A, GR3Z1125E, GR3Z1125J |
| MAGMA PRODUCTS | PMR203098 |
| NEWTEK AUTOMOTIVE | R1376 |
| Newtek Automotive USA | R1376 |
| Qualis | 42316 |
| UAP | R61114 |
| WORLDPAC | 1407-524205, 1427-587154 |
| Wagner Brake | BD180694E |
| Winhere | 6622820 |
RAYBESTOS 681952R Fits Vehicles
- Ford Mustang (2015-2020)
