(888) 312-8812 Login SignupRAYBESTOS 680686FZN Raybestos Element3 Coated Brake Rotor
MSRP: $85.45
$6449
Save $20.96
Limited availability at this price!
In Stock
Get it by Friday, Feb 20
RAYBESTOS 680686FZN Part Description
Manufacturer
Product Description

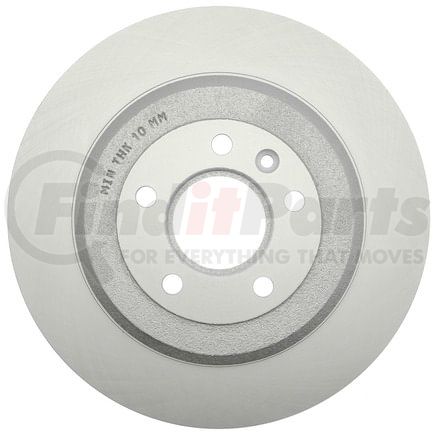

Raybestos Element3 Coated Brake Rotor
Application Summary
2019-2011 Ford Explorer Rear, 2014-2011 Ford Edge Rear, 2019-2009 Ford Taurus Rear, 2019-2009 Ford Flex Rear, 2015-2011 Lincoln MKX Rear, 2012-2009 Lincoln MKS Rear, 2019-2010 Lincoln MKT Rear, 2009 Ford Taurus X Rear
Features & Benefits
- Grey Fusion 4.0(R) Coating
- Grey Fusion 4.0® Coating
- Grey Fusion 4.0(R) coating provides optimal corrosion resistance and faster brake jobs.
- Grey Fusion 4.0® coating provides optimal corrosion resistance and faster brake jobs.
- RPT(R) Rust Prevention Technology
- RPT® Rust Prevention Technology
- RPT(R) Rust Prevention Technology for long lasting rust prevention.
- RPT® Rust Prevention Technology for long lasting rust prevention.
- Cooling Vanes
- Cooling vanes are coated to ensure vanes remain clear of rust and corrosion for optimal airflow and cooling.
- OE Matched
- OE Matched precision and performance.
- Non-Directional Finish
- A non-directional ground finish provides a product that is ready to install right out of the box.
RAYBESTOS 680686FZN Specifications
Product Attributes
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.4 IN |
| Discard Thickness | 9.9 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.6 IN |
| Mounting Bolt Hole Diameter | 14.2 MM |
| Nominal Thickness | 0.4 IN |
| Nominal Thickness | 10.9 MM |
| Salability Restrictions | No |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
| ABS Tone Ring Included | No |
| Weight [cntrc] Lbs | 14.5 |
| Weight [cntrc] Kgs | 6.6 |
| Center Hole Diameter | 2.7 IN |
| Bearings Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Maximum Brake Diameter (Discard) | 330.0 MM |
| Construction | Full Cast |
| Rust Resistant Coating | Yes |
| Inside Diameter | 8.9 IN |
| Overall Height | 1.5 IN |
| Outside Diameter | 8.7 IN |
| Mounting Bolt Hole Quantity | 5 |
| Grade Type | Regular |
| Center Hole Diameter | 68.0 MM |
| Inside Diameter | 225.5 MM |
| Outside Diameter | 221.0 MM |
| Overall Height | 38.7 MM |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| Canadian Harmonizing Tariff Code | 8708309990 |
| UPC | 00887213142976 |
RAYBESTOS 680686FZN Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | G09289SD |
| ADVICS | K6R160U |
| AUTOPARTSOURCE | 592675 |
| AUTOXTRA | AX900928 |
| AUTOZONE | 42262, 42262DG, 42266 |
| Autoxtra | AX900928P |
| BENDIX | PRT5898 |
| BOSCH | 20010394 |
| BRAKEBEST | 20010394, 680686, 680686FZN, 680686PER, 680686R |
| BREMBO | 08.B584.10 |
| BrakeBest | 680686RGS |
| CENTRIC | 320.61081 |
| Centric Parts | 120.61081, 121.61081 |
| DURA CORP | BR54165, BR900928, BR900928-02 |
| DuraGo | BR900928, BR900928-01 |
| Eurorotor | 54219 |
| FORD | 8G1Z2C026B, BT4Z2C026A, BT4Z2C026B, AG1Z2C026A |
| Ford | 5U2Z1V125GD |
| NEWTEK AUTOMOTIVE | 54165 |
| Newtek Automotive USA | 54165 |
| PROMAX | 14-54165, 20-54165 |
| Parts Master | 900928 |
| TopNotch | TN680686GEO |
| Ultra Brake | 54219 |
| WINHERE | 661815 |
| WORLDPAC | 1407-26921 |
RAYBESTOS 680686FZN Fits Vehicles
- Lincoln MKX (2011-2015)
- Ford Explorer (2011-2019)
- Ford Edge (2011-2014)
- Lincoln MKT (2010-2019)
- Ford Taurus X (2009)
- Mercury Sable (2009)
- Ford Taurus (2009-2019)
- Ford Flex (2009-2019)
- Lincoln MKS (2009-2012)
