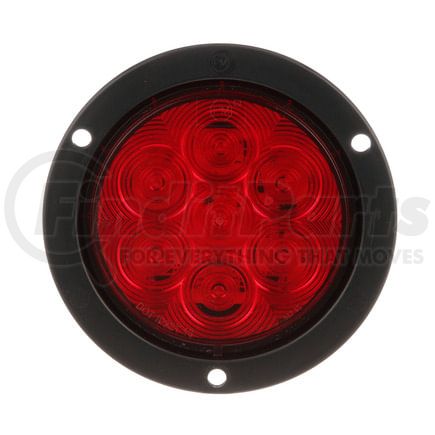

817R-7/818R-7 LumenX® 4" Round LED Stop, Turn and Tail Lights, AMP

Peterson Lighting LumenX® 4" Round LED Stop, Turn & Tail Light

For enhanced trucking safety, equip your truck with a high-quality Peterson Lighting LumenX® 4" round LED stop, turn & tail light. This product effectively combines all three crucial functions—stop, turn, and tail— into one industry-standard light.

Features & Benefits

  • A 7-diode flange-mount light with white diodes behind the red lens
  • Comes with an AMP-compatible Piranha® connector and flange that are integrated into the housing to form a single unit
  • Provides voltage protection and consistent light output over the entire voltage range with its regulated design
  • Product’s operating range is 9 to 16 volts
  • Does not have to be “Top” positioned to meet FMVSS 108 requirements
  • Engineered to meet the needs of any stop tail turn lighting situation

Product Description

LED STOP/TURN/TAIL, ROUND, AMP, FLANGE-MOUNT 4"

Features & Benefits

  • 7 diodes.
  • Available in retail-friendly Viz Pack.
  • Defender harness & lighting system approved.
  • Lumenx® lens and circuitry.
  • Made in USA.
  • Voltage Regulated.
  • White diodes behind red lens.
  • Advanced optics fully illuminate lens.
  • AMP-compatible connector integrated into housing.
  • 818-7 has flange integrated into the housing.
  • 817-7 has skirted weld joint for added protection against moisture.
  • 9–16 volt operating range.
  • Regulated design provides voltage protection and consistent light output over a wide voltage range.
  • Does not require “Top” positioning to meet FMVSS 108 standard.
  • 817 kit includes light, grommet and 817-49 plug.
  • 818 kit includes light and 817-49 plug.

417-49: hardshell plug (poly pack - std qty 6)

Product Attributes

Bulb Technology LED
Bulb/diode Count 7
California Proposition 65 Required Y
Container Type poly bag
Diameter 5.5 IN
Family LumenX
Height 5.5 in
Integral Reflex N
Length 5.5 in
Lens Color red
Light Color red
Marine Use Y
Maximum Voltage 16 Volts
Minimum Voltage 9 Volts
Mounting Type flange
Multi-volt N
Regulatory Compliance DOT
Shape round
Termination AMP
Voltage 12 Volts
Width 1.49 in

Additional Information

Country of Origin (Primary) US
Harmonized Tariff Code (Schedule B) 8512204000
UPC 00044464993461
VMRS Code 034002059

Part Interchanges

Peterson Lighting® is a family-owned company that produces and distributes vehicle safety lighting systems mirrors, and other related safety products and accessories. It has been in the business for 75 years, and currently, it offers over 2,200 products designed for various applications, including tilt-bed and cargo vehicles and light- and medium-duty trailers. Peterson Lighting believes that full commitment to quality is its responsibility as a market leader. All its components are designed and manufactured only in its ISO 9001/QS-9000-certified facility in Grandview, MO. This facility is handled by knowledgeable and highly skilled specialists, who are as dedicated and passionate as the company when it comes to quality.
